MA31751 Datasheet - Dynex

MA31751 Memory Management & Block Protection Unit

MA31751 MA31751 Memory Management & Block Protection Unit Replaces June 1999 version, DS4083-2.0 DS4083-3.0 January 2000 The MA31751 Memory Management Unit/Block Protect Unit (MMU/BPU) is an optional chip which may be used to expand the capabilities of the MA31750. User configurable, the MA31751 can perform as an MMU, a BPU or both MMU and BPU, conforming to MIL-STD-1750A and 1750B. MMU mapping and BPU protection for 1M words of memory is provided by the internal memory. Up to 16 MA31751 devic.

MA31751 Features

* s MlL-STD-1750A/B Compatible s Radiation Hard CMOS/SOS Technology s User Configurable as Either a Memory Management Unit (MMU) or a Block Protect Unit (BPU) or Both s Memory Management Unit Configuration

* 1 MWord Physical Address Space

* Access Lock and Key of 4K-Word Blocks

MA31751 Datasheet (160.97 KB)

Preview of MA31751 PDF

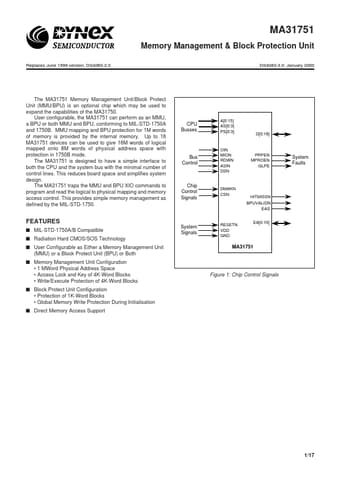

MA31751 Datasheet Preview Page 2 MA31751 Datasheet Preview Page 3

Datasheet Details

Part number:

MA31751

Manufacturer:

Dynex

File Size:

160.97 KB

Description:

Memory management & block protection unit.
