MA31755

16-Bit Feedthrough Error Detection & Correction Unit EDAC

MA31755 Features

* s Fast Feedthrough (35ns Detect and Correct Cycle) s 16-Bit Operation with 6 Check Bits s Radiation Hard CMOS/SOS Technology s Feedthrough Operation s Error Corrected/Uncorrected Flags s High Drive Capability on Memory Busses Figure 1: Chip Signals 1/13 MA31755 1. PIN DESCRIPTIONS POWER VDD x8 VS

MA31755 General Description

POWER VDD x8 VSS x8 BUSSES PD[0:16] MD[0:16] CB[0:5] I/O I/O I/O Active High Active High Active High Processor data bus + parity bit (bit 16) Memory data bus + parity bit (bit 16) Memory check bit bus Input Input Supply - 5V nominal (all must be connected) Circuit 0V reference (all must be connecte.

MA31755 Datasheet (134.22 KB)

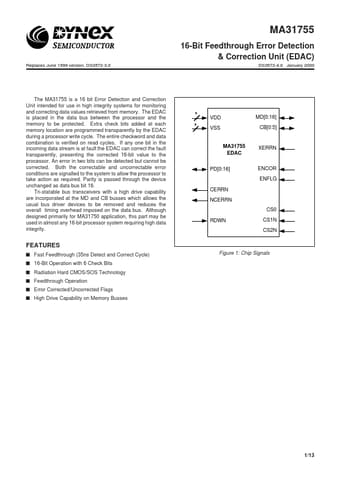

Preview of MA31755 PDF

Datasheet Details

Part number:

MA31755

Manufacturer:

Dynex

File Size:

134.22 KB

Description:

16-bit feedthrough error detection & correction unit edac.
MA31755 MA31755 16-Bit Feedthrough Error Detection & Correction Unit (EDAC) Replaces June 1999 version, DS3572-3.0 DS3572-4.0 January 2000 The MA317.
