MA31753

DMA Controller (DMAC) For An MA31750 System

MA31753 Features

* s Radiation Hard CMOS SOS Technology s Four Independant DMA Channels s MIL-STD-1750A or B Operation in an MA31750 System s Capable of Processor Independant Table Driven Operation s Memory to Memory, I/O to Memory, Memory to I/O and I/O to I/O Transfers Supported s Masking of Individual Channel DMA R

MA31753 General Description

The MA31753 DMA controller has 4 channels from which independant transfers can be executed. These channels have programmable priorities and can be masked. They can also be enabled and disabled under software control. The data can be transferred in several modes - single word mode, double word mode a.

MA31753 Datasheet (243.67 KB)

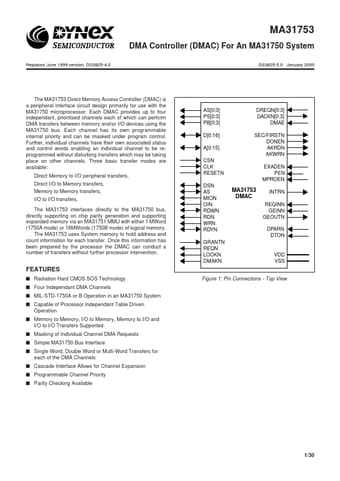

Preview of MA31753 PDF

Datasheet Details

Part number:

MA31753

Manufacturer:

Dynex

File Size:

243.67 KB

Description:

Dma controller (dmac) for an ma31750 system.
MA31753 MA31753 DMA Controller (DMAC) For An MA31750 System Replaces June 1999 version, DS3825-4.0 DS3825-5.0 January 2000 The MA31753 Direct Memory.
