EC9413, EC9413-E Datasheet - E-Cmos

EC9413 2A 380KHZ 20V PWM Buck DC/DC Converter

The EC9413 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circuit, err.

EC9413 Features

* z 2A Constant Output Current z 140mΩ RDSON Internal Power PMOSFET Switch z Up to 95% Efficiency z Fixed 380KHz Frequency z Wide 3.6V to 20V Input Voltage Range z Output Adjustable from 1.20V to 18V z Built in Frequency Compensation z Built in Thermal Shutdown Function z Built in Current Limit Functi

EC9413-E-Cmos.pdf

This datasheet PDF includes multiple part numbers: EC9413, EC9413-E. Please refer to the document for exact specifications by model.

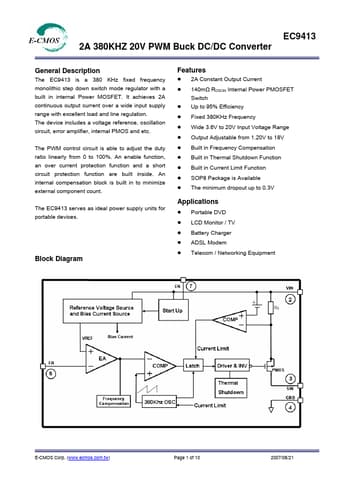

EC9413 Datasheet Preview Page 2 EC9413 Datasheet Preview Page 3

Datasheet Details

Part number:

EC9413, EC9413-E

Manufacturer:

E-Cmos

File Size:

342.95 KB

Description:

2a 380khz 20v pwm buck dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: EC9413, EC9413-E.
Please refer to the document for exact specifications by model.
