S2MF, S2MF-E SURFACE MOUNT RECTIFIER

S2MF Description

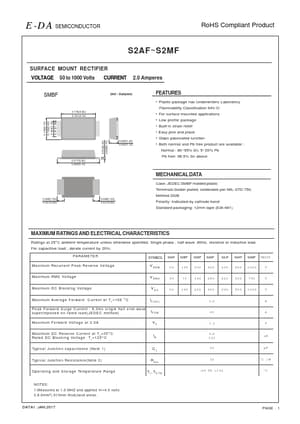

E-DA SEMICONDUCTOR RoHS Compliant Product S2AF~S2MF SURFACE MOUNT RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 2.0 Amperes 0.146(3.70) 0.136(3.45) 0.

S2MF Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

S2MF Applications

* Low profile package
* Built-in strain relief
* Easy pick and place
* Glass passivated iunction
* Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above MECHANICAL DATA Case: JEDEC SMBF molded plastic Terminals:So

📥 Download Datasheet

S2MF Datasheet Preview — This datasheet PDF includes multiple part numbers: S2MF, S2MF-E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: S2MF, S2MF-E
Manufacturer: E-DA SEMICONDUCTOR
File Size: 135.25 KB
Datasheet: S2MF-E-DASEMICONDUCTOR.pdf
Description: SURFACE MOUNT RECTIFIER
Note: This datasheet PDF includes multiple part numbers: S2MF, S2MF-E.
Please refer to the document for exact specifications by model.
