FP1007R6 - High current power inductors

FP1007R6 Description

Technical Data 10007 Effective June 2017 Supersedes September 2012 FP1007R6 High frequency, high current power inductors SMD Device Product .

FP1007R6 Features

* 10.5 x 8.0 x 7.0mm Maximum surface mount package
* Ferrite core material
* Controlled DCR tolerance for sensing circuits
* Inductance Range from 150nH to 470nH
* Current range from 23.5 to 75 Amps
* Frequency range up to 2MHz
* Halogen free,

FP1007R6 Applications

* Multi-phase regulators
* Voltage Regulator Modules (VRMs)
* Desktop and server VRMs and EVRDs
* Data networking and storage systems
* Graphics cards and battery power systems
* Point-of-Load modules
* DCR Sensing Environmental data

📥 Download Datasheet

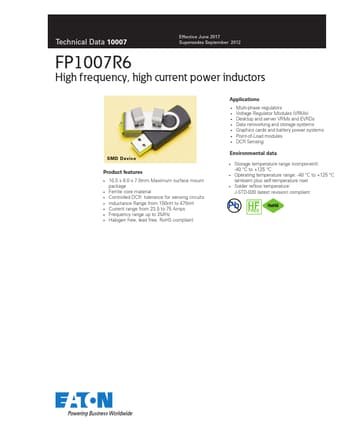

Preview of FP1007R6 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP1007R6
Manufacturer
EATON
File Size
1.61 MB
Datasheet
FP1007R6-EATON.pdf
Description
High current power inductors
