SRT100 Datasheet - ECM Electronics

SRT100 Toroidal Transformers

www.DataSheet4U.com ECM Toroidal Transformers SRT Series Unique True Torus Core Design CSA, and UL Approvals Customised Designs Very Low Flux Leakage High Efficiency The SRT series is our latest development in toroidal transformers. They differ in design from traditional toroidal transformers as the advanced core construction produces characteristics similar to that of Rcored transformers. The improved rounded section of the core leads to a substantial reduction i.

SRT100_ECMElectronics.pdf

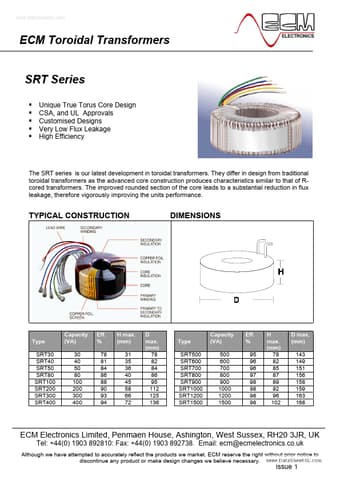

Preview of SRT100 PDF

Datasheet Details

Part number:

SRT100

Manufacturer:

ECM Electronics

File Size:

419.94 KB

Description:

Toroidal transformers.
