SRT12 Datasheet - Taiwan Semiconductor

SRT12, (SRT12 - SRT115) Schottky Barrier Rectifiers

www.DataSheet4U.com SRT12 - SRT115 1.0 AMP.Schottky Barrier Rectifiers TS-1 .

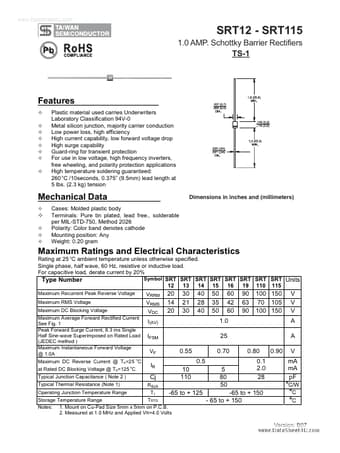

datasheet Preview Page 1 from Datasheet4u.com

SRT12_TaiwanSemiconductor.pdf

SRT12 Datasheet Preview — Preview of SRT12 PDF

Datasheet Details

Part number:

SRT12

Manufacturer:

Taiwan Semiconductor

File Size:

186.64 KB

Description:

(SRT12 - SRT115) Schottky Barrier Rectifiers

Features

* Plastic material used carries Underwriters Laboratory Classification 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability Guard-ring for transient protection For use in low voltage, high freq

Applications

* High temperature soldering guaranteed: 260 oC /10seconds, 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Cases: Molded plastic body Terminals: Pure tin plated, lead free. , solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode Mounting position: Any Weig
