SRT13, SRT12 - (SRT12 - SRT115) Schottky Barrier Rectifiers

Taiwan Semiconductor

📥 Download Datasheet

SRT13 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRT13, SRT12. Please refer to the document for exact specifications by model.

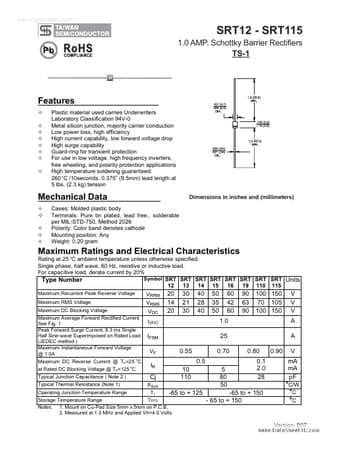

datasheet Preview Page 2

Datasheet Details

Part number	SRT13, SRT12
Manufacturer	Taiwan Semiconductor ↗
File Size	186.64 KB
Description	(SRT12 - SRT115) Schottky Barrier Rectifiers
Datasheet	SRT12_TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SRT13, SRT12. Please refer to the document for exact specifications by model.

SRT13 Product details

Features

Plastic material used carries Underwriters Laboratory Classification 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability Guard-ring for transient protection For use in low voltage, high frequency inverters, free wheeling, and polarity protection.
