DR2-4180, DR2-3100, Two-Port SAW Resonator

The ECS-DR2 Series are 2-port 180° SAW (Surface Acoustic Wave) resonators in a thru-hole TO39-3A package.They offer a fundamental mode, quartz freque.

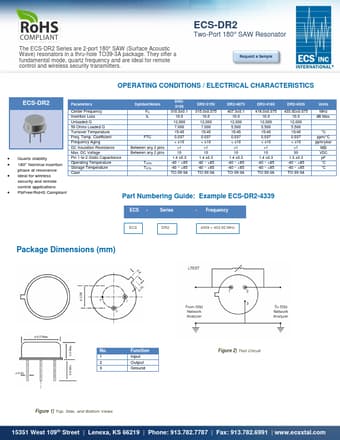

datasheet Preview Page 1 from Datasheet4u.com

DR2-3100-ECS.pdf

DR2-4180 Datasheet Preview — This datasheet PDF includes multiple part numbers: DR2-4180, DR2-3100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DR2-4180, DR2-3100

Manufacturer:

ECS

File Size:

442.59 KB

Description:

Two-Port SAW Resonator

Note:

This datasheet PDF includes multiple part numbers: DR2-4180, DR2-3100.
Please refer to the document for exact specifications by model.

Applications

* PbFree/RoHS Compliant Part Numbering Guide: Example ECS-DR2-4339 ECS - Series - Frequency ECS DR2 4339 = 433.92 MHz Package Dimensions (mm) No. Function 1 Input 2 Output 3 Ground Figure 2) Test Circuit Figure 1) Top, Side, and Bottom Views 15351 West 109th Street | Lenex
