DR2-4339 Datasheet - ECS

DR2-4339 Two-Port SAW Resonator

The ECS-DR2 Series are 2-port 180° SAW (Surface Acoustic Wave) resonators in a thru-hole TO39-3A package. They offer a fundamental mode, quartz frequency and are ideal for remote control and wireless security transmitters. ECS-DR2 Two-Port 180° SAW Resonator Request a Sample OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS ECS-DR2 Parameters Symbol/Notes DR23100 DR2-3150 DR2-4073 DR2-4180 DR2-4339 Units Center Frequency FO 310.0±0.1 315.0±0.075 407.3±0.1 418.0±0.075 433.92±0.075.

DR2-4339 Datasheet (442.59 KB)

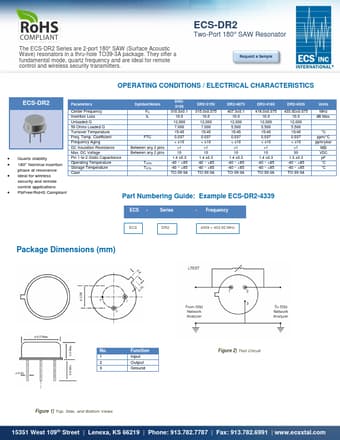

DR2-4339 Datasheet Preview — Preview of DR2-4339 PDF

Datasheet Details

Part number:

DR2-4339

Manufacturer:

ECS

File Size:

442.59 KB

Description:

Two-port saw resonator.
