AR3508 - AUTOMOTIVE RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.

📥 Download Datasheet

Datasheet preview – AR3508

Datasheet Details

Part number AR3508
Manufacturer EIC discrete Semiconductors
File Size 17.06 KB
Description AUTOMOTIVE RECTIFIER DIODES
Datasheet download datasheet AR3508 Datasheet

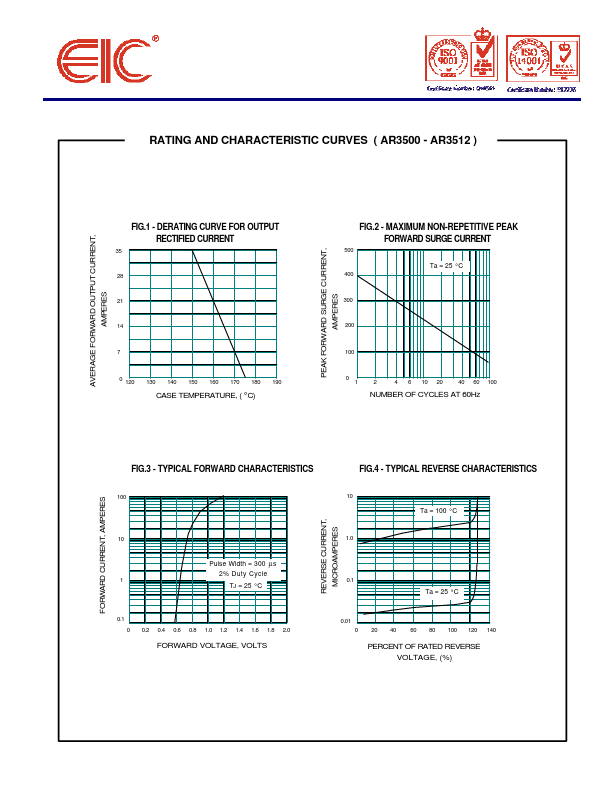

Additional preview pages of the AR3508 datasheet.

📁 Similar Datasheet

  • AR3508 - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3508L - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3500 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR3500 - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3500L - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3501 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR3501 - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3501L - AUTOMOTIVE RECTIFIER DIODES (EIC)
  • AR3502 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR3502 - AUTOMOTIVE RECTIFIER DIODES (EIC)
Other Datasheets by EIC discrete Semiconductors

    Full PDF Text Transcription

    Click to expand full text
    AR3500 - AR3512 PRV : 50 - 1200 Volts Io : 35 Amperes FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop AUTOMOTIVE RECTIFIER DIODES 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2) MECHANICAL DATA : * * * * * * Case : Molded plastic Epoxy : UL94V-O rate flame retardant Terminals : Terminal are readily solderable Polarity : Cathode polarity band Mounting position : Any Weight : 1.84 grams 0.225 (5.7) 0.215 (5.5) Dimensions in inches and (millimeter) Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
