AR3504 - AUTOMOTIVE RECTIFIER DIODES

This page provides the datasheet information for the AR3504, a member of the AR3500 AUTOMOTIVE RECTIFIER DIODES family.

Datasheet Summary

Features

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free.

Datasheet Details

Part number	AR3504
Manufacturer	EIC
File Size	34.99 KB
Description	AUTOMOTIVE RECTIFIER DIODES
Datasheet	AR3504 Datasheet

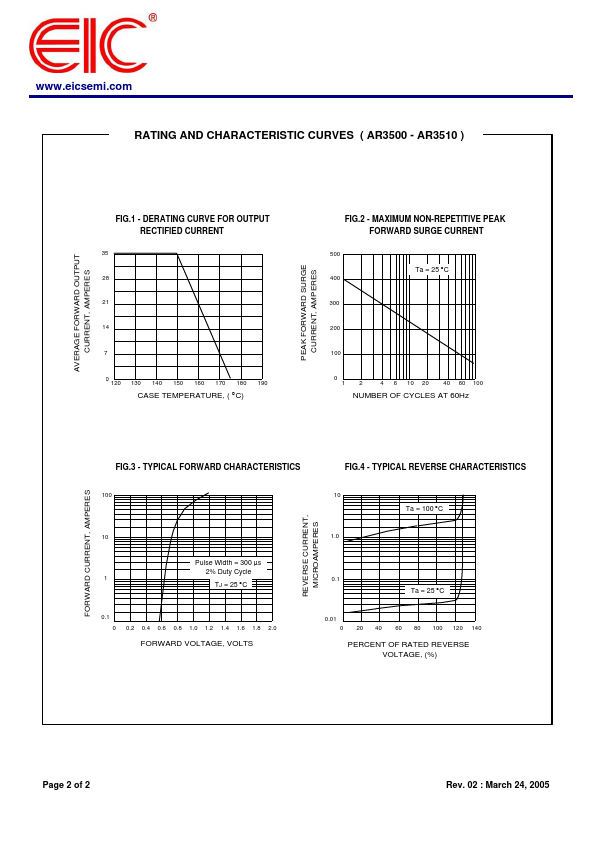

Additional preview pages of the AR3504 datasheet.

📁 Similar Datasheet

AR3504 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)

AR3500 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)

AR3501 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)

AR3502 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)

AR3505 - BUTTON AUTOMOTIVE RECTIFIER (MIC GROUP RECTIFIERS)

AR3505 - 35.0 AMP SILICON RECTIFIERS (UNIOHM)

AR3505 - 35A Automotive Rectifiers (TAITRON Components Incorporated)

AR3505 - Rectifiers (Daesan Electronics)

AR3505 - BUTTON AUTOMOTIVE RECTIFIER (MIC GROUP RECTIFIERS)

AR3505 - 35.0 AMP SILICON RECTIFIERS (GW)

Full PDF Text Transcription

Click to expand full text

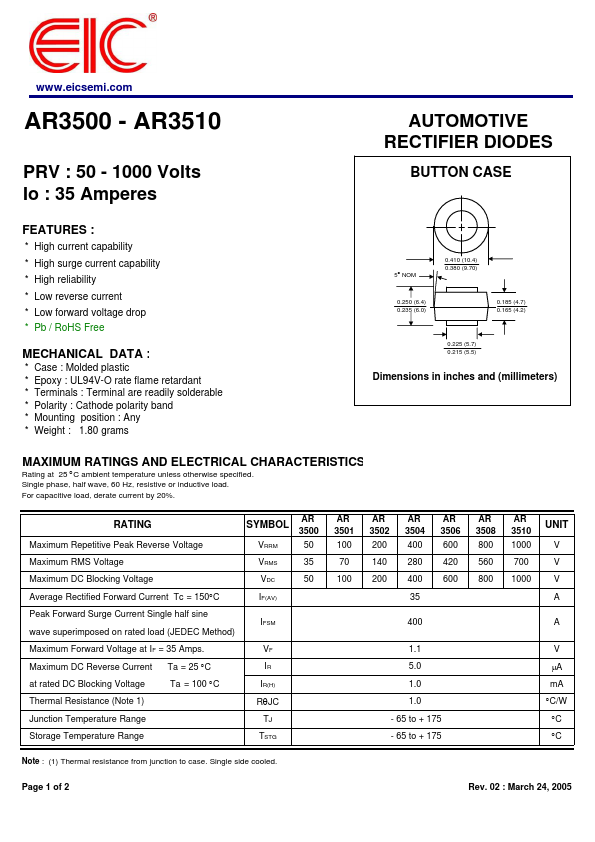

www.eicsemi.com AR3500 - AR3510 PRV : 50 - 1000 Volts Io : 35 Amperes AUTOMOTIVE RECTIFIER DIODES BUTTON CASE FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : Molded plastic * Epoxy : UL94V-O rate flame retardant * Terminals : Terminal are readily solderable * Polarity : Cathode polarity band * Mounting position : Any * Weight : 1.80 grams 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2) 0.225 (5.7) 0.215 (5.5) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
