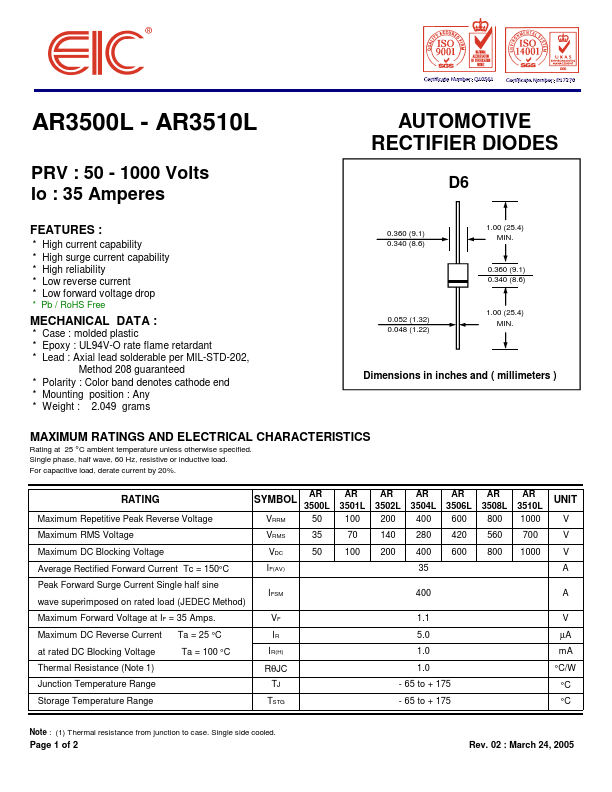

AR3501L, AR3500L AUTOMOTIVE RECTIFIER DIODES

AR3501L Description

AR3500L - AR3510L PRV : 50 - 1000 Volts Io : 35 Amperes AUTOMOTIVE RECTIFIER DIODES D6 .

AR3501L Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AR3501L, AR3500L. Please refer to the document for exact specifications by model.

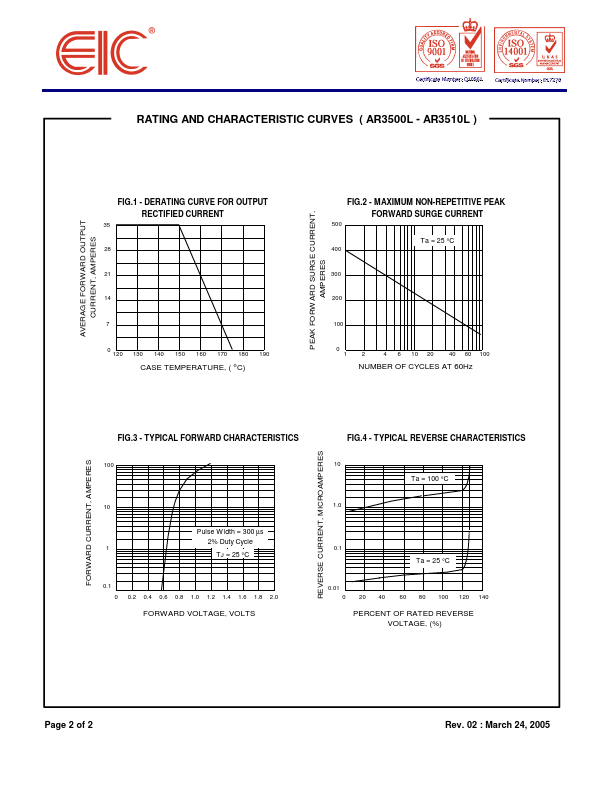

datasheet Preview Page 2

Datasheet Details

Part number
AR3501L, AR3500L
Manufacturer
EIC
File Size
40.42 KB
Datasheet
AR3500L-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: AR3501L, AR3500L.
Please refer to the document for exact specifications by model.
