STUKxxx - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

STUKxxx Description

Certificate TH97/10561QM Certificate TW00/17276EM STUK06I - STUK5G4 VBR : 6.8 - 440 Volts PPK : 1500 Watts .

STUKxxx Features

* :
* 1500W www. DataSheet4U. com surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to V BR(min. )
* Typical I R less then 1µA above 10V
* Pb / RoHS Free SURFACE MOUNT TRANSIENT VOLTAGE SUPP

STUKxxx Applications

* For bi-directional altered the third letter of type from "U" to be "B". Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at

📥 Download Datasheet

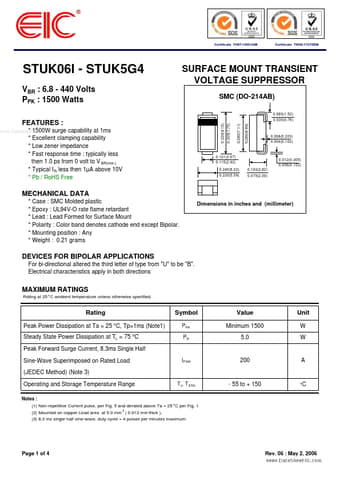

Preview of STUKxxx PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STUKxxx
Manufacturer
EIC discrete Semiconductors
File Size
86.72 KB
Datasheet
STUKxxx_EICdiscreteSemiconductors.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
