STUBxxx - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Features

:.
400W surge capability at 1ms.
Excellent clamping capability.
Low zener impedance.
Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. ).
Typical IR less then 1µA above 10V.

EIC discrete Semiconductors

Datasheet Details

Part number	STUBxxx
Manufacturer	EIC discrete Semiconductors
File Size	28.18 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	STUBxxx Datasheet
Additional preview pages of the STUBxxx datasheet.

📁 Similar Datasheet

STU03L01 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
STU03L07 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
STU03N20 - N-Channel MOSFET (SamHop Microelectronics)
STU04N20 - N-Channel MOSFET (SamHop Microelectronics)
STU06L01 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
STU09N25 - N-Channel MOSFET (SamHop Microelectronics)
STU100N3LF3 - N-channel Power MOSFET (ST Microelectronics)
STU102S - N-Channel MOSFET (SamHop Microelectronics)
STU1030PL - P-Channel Enhancement Mode MOSFET (SamHop Microelectronics)
STU10L01 - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)

Other Datasheets by EIC discrete Semiconductors

STU6010 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STU6xxx - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STUKxxx - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STUN061 - (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STUN0xx - (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STUN5xx - (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
STUNxxx - (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

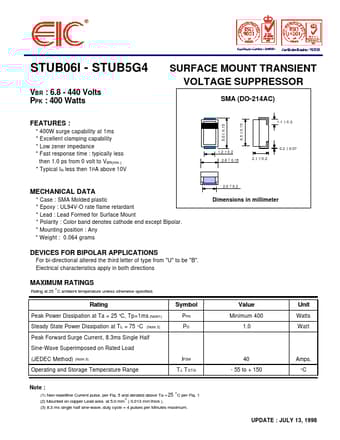

STUB06I - STUB5G4 VBR : 6.8 - 440 Volts PPK : 400 Watts FEATURES : * 400W surge capability at 1ms * Excellent clamping capability * Low zener impedance * Fast response time : typically less then 1.0 ps from 0 volt to VBR(min.) * Typical IR less then 1µA above 10V SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMA (DO-214AC) 5.0 ± 0.15 4.5 ± 0.15 1.1 ± 0.3 1.2 ± 0.2 2.6 ± 0.15 2.1 ± 0.2 0.2 ± 0.07 2.0 ± 0.2 MECHANICAL DATA * Case : SMA Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Lead Formed for Surface Mount * Polarity : Color band denotes cathode end except Bipolar. * Mounting position : Any * Weight : 0.064 grams Dimensions in millimeter DEVICES FOR BIPOLAR APPLICATIONS For bi-directional altered the third letter of type from "U" to be "B".
