STUNxxx, STUN061 Datasheet - EIC discrete Semiconductors

STUNxxx, STUN061, (STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

www.DataSheet4U.com STUN06I - STUN5D0 VBR : 6.8 - 200 Volts PPK : 1500 Watts .

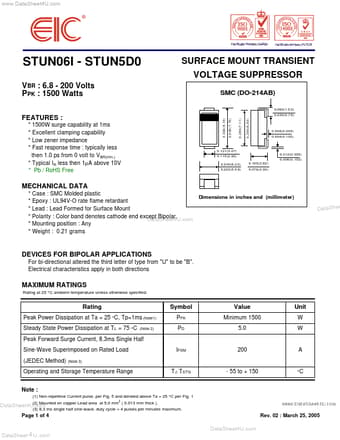

datasheet Preview Page 1 from Datasheet4u.com

STUN061_EICdiscreteSemiconductors.pdf

STUNxxx Datasheet Preview — This datasheet PDF includes multiple part numbers: STUNxxx, STUN061. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STUNxxx, STUN061

Manufacturer:

EIC discrete Semiconductors

File Size:

246.84 KB

Description:

(STUN061 - STUN5D0) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: STUNxxx, STUN061.
Please refer to the document for exact specifications by model.

Features

* :
* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min. )
* Typical IR less then 1µA above 10V
* Pb / RoHS Free SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMC (DO-214AB)

Applications

* For bi-directional altered the third letter of type from "U" to be "B". Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature unless otherwise specified. Rating Peak Power Dissipation at Ta = 25 °C, Tp=1ms (Note1) Steady State Power Dissipation at
