1SR35-100 SILICON RECTIFIER DIODES

EIC

Description

1SR35-100 ~ 1SR35-400 SILICON RECTIFIER DIODES PRV : 100 - 400 Volts Io : 1.0 Ampere DO - 41 .

📥 Download Datasheet

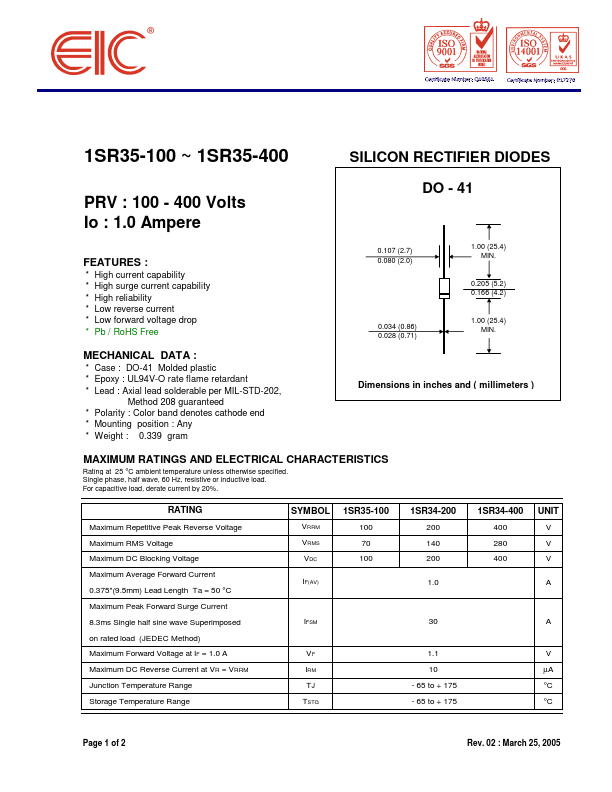

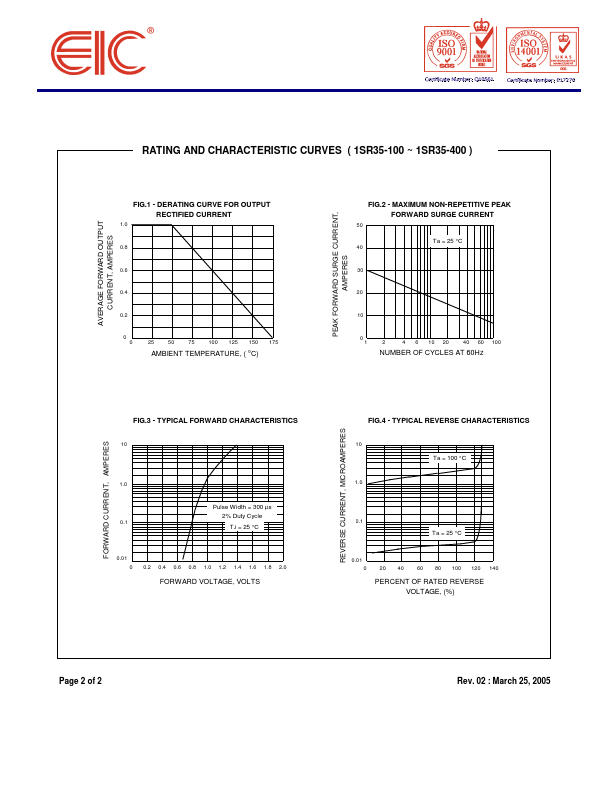

1SR35-100 Datasheet Preview — Preview of 1SR35-100 PDF

Datasheet Specifications

Part number: 1SR35-100
Manufacturer: EIC
File Size: 27.38 KB
Datasheet: 1SR35-100-EIC.pdf
Description: SILICON RECTIFIER DIODES

Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable p
