1SR35-200, 1SR35-100 SILICON RECTIFIER DIODES

Sunmate

Description

1SR35-100 - 1SR35-400 SILICON RECTIFIER DIODES VOLTAGE RANGE: 100 - 400V CURRENT: 1.0 A .

📥 Download Datasheet

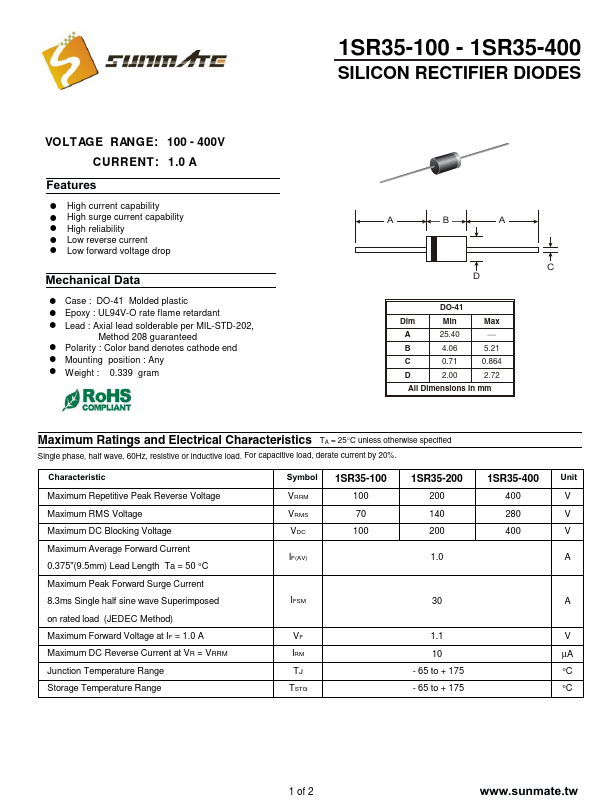

1SR35-200 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1SR35-200, 1SR35-100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1SR35-200, 1SR35-100
Manufacturer: Sunmate
File Size: 102.17 KB
Datasheet: 1SR35-100-Sunmate.pdf
Description: SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: 1SR35-200, 1SR35-100.
Please refer to the document for exact specifications by model.

Features

* ! High current capability ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop Mechanical Data ! Case : DO-41 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color
