1SR35-100 SILICON RECTIFIER DIODES

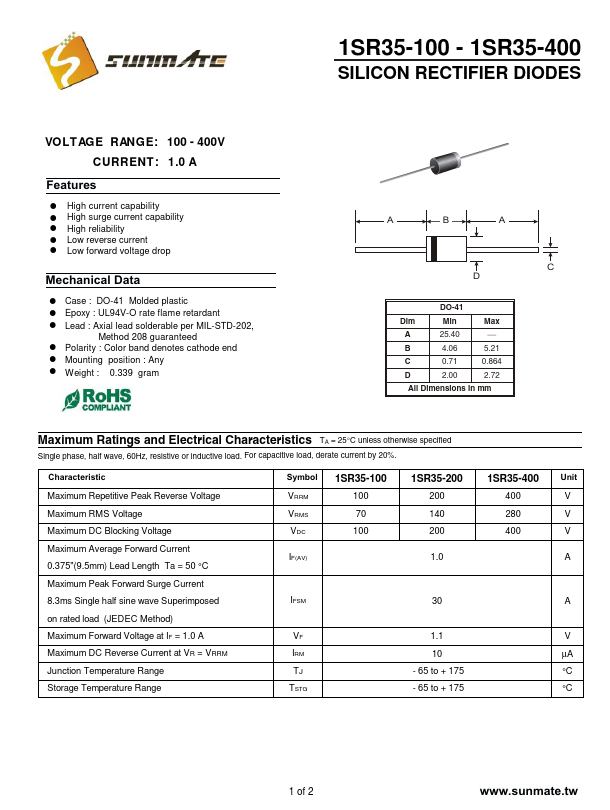

📥 Download Datasheet  Datasheet Preview Page 1

Description

1SR35-100 - 1SR35-400 SILICON RECTIFIER DIODES VOLTAGE RANGE: 100 - 400V CURRENT: 1.0 A .

📥 Download Datasheet

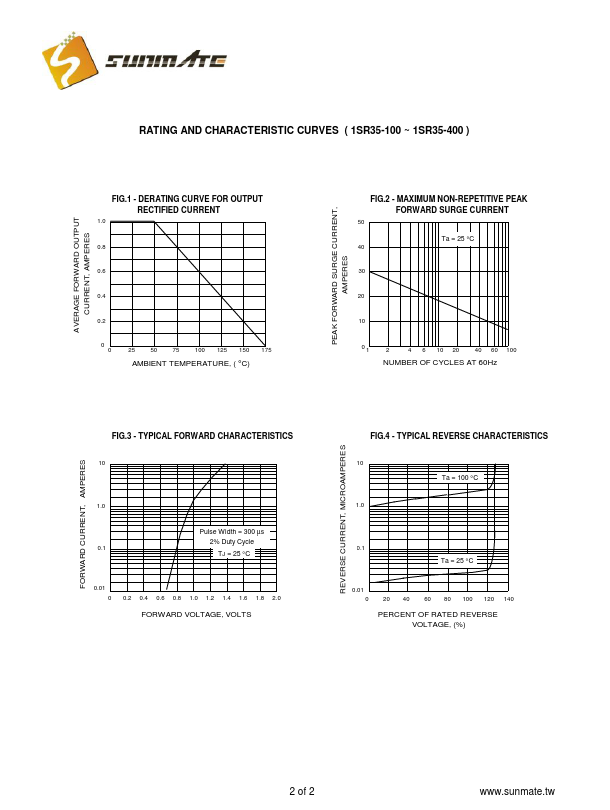

Preview of 1SR35-100 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
1SR35-100
Manufacturer
Sunmate
File Size
102.17 KB
Datasheet
1SR35-100-Sunmate.pdf
Description
SILICON RECTIFIER DIODES

Features

* ! High current capability ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop Mechanical Data ! Case : DO-41 Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Color
