3.0SMCJ11 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

3.0SMCJ11 Description

TH97/10561QM TW00/17276EM IATF 0060636 SGS TH07/1033 3.0SMCJ11 - 220A Stand-off Voltage : 11 to 220V Peak Pulse Power : 3000 W .

3.0SMCJ11 Features

* :
* 3000W peak pulse power capability with a 10/1000µs waveform
* Excellent clamping capability
* Low inductance
* High temperature soldering : 250 °C/10 seconds at terminals.
* Built-in strain relief
* Pb / RoHS Free MECHANICAL DATA :
* Case : SMC Molded plastic
* Ep

3.0SMCJ11 Applications

* For Bi-directional use C or CA Suffix Electrical characteristics apply in both directions SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SMC (DO-214AB) 1.1 ± 0.3 8.0 ± 0.15 7.5 ± 0.15 3.0 ± 0.2 5.8 ± 0.15 2.3 ± 0.2 0.2 ± 0.07 Dimensions in millimeters MAXIMUM RATINGS Rating at 25 °C ambient temper

📥 Download Datasheet

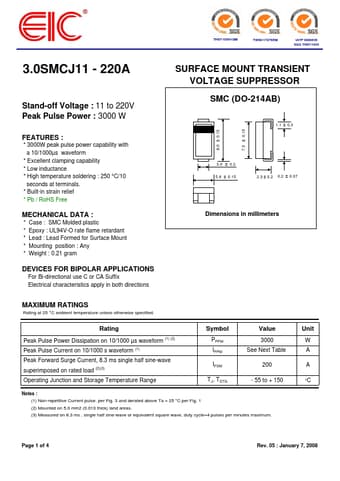

Preview of 3.0SMCJ11 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3.0SMCJ11
Manufacturer
EIC
File Size
63.88 KB
Datasheet
3.0SMCJ11-EIC.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
