3.0SMCJ11C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

3.0SMCJ11C Description

Certificate TH97/10561QM Certificate TW00/17276EM 3.0SMCJ11C - 220CA Stand-off Voltage : 11 to 220V Peak Pulse Power : 3000 W SURFACE MOUNT TRANSIE.

3.0SMCJ11C Features

* :
* 3000W peak pulse power capability with a 10/1000µs waveform
* Excellent clamping capability
* Low inductance
* High temperature soldering : 250 °C/10 seconds at terminals.
* Built-in stran relief
* Pb / RoHS Free MECHANICAL DATA
* Case : SMC Molded plastic
* Epoxy

3.0SMCJ11C Applications

* For uni-directional without "C" Electrical characteristics apply in both directions MAXIMUM RATINGS Rating at 25 °C ambient temperature u

📥 Download Datasheet

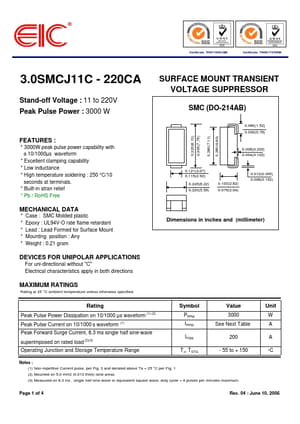

Preview of 3.0SMCJ11C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
3.0SMCJ11C
Manufacturer
EIC
File Size
48.26 KB
Datasheet
3.0SMCJ11C-EIC.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
