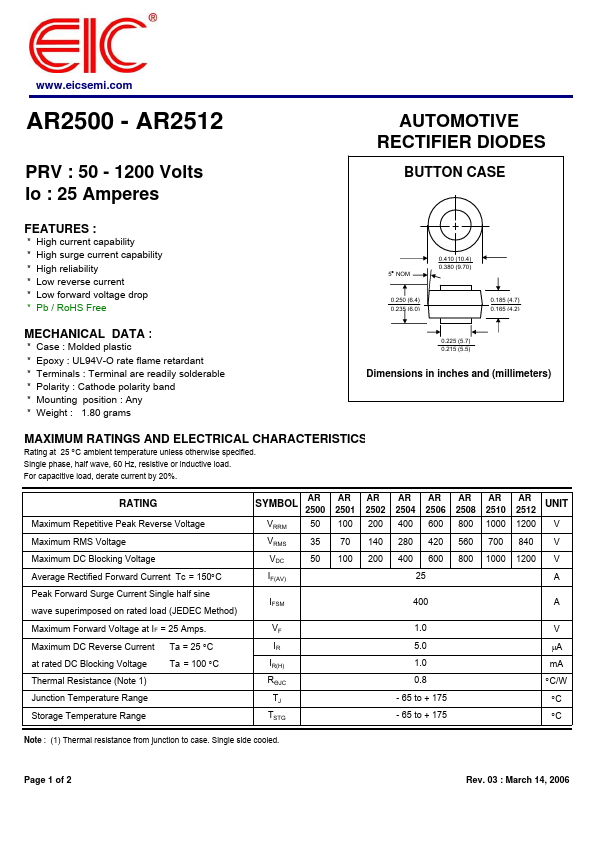

AR2512

The AR2512 is AUTOMOTIVE RECTIFIER DIODES designed by EIC.

Product Overview

EIC

Part number	AR2512, AR2500
Manufacturer	EIC
File Size	78.41 KB
Description	AUTOMOTIVE RECTIFIER DIODES
Datasheet	AR2500-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: AR2512, AR2500. Please refer to the document for exact specifications by model.

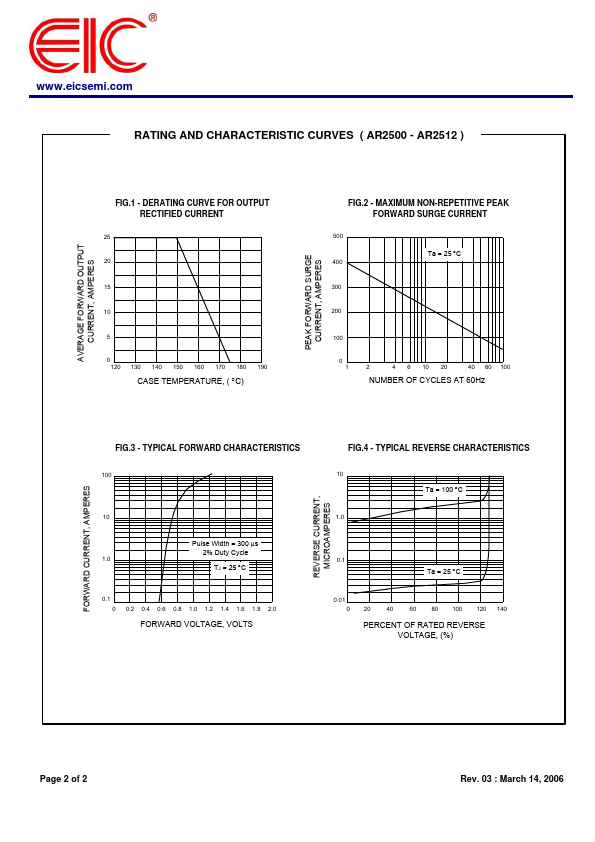

Additional preview pages of the AR2512 datasheet.

:.
High current capability.
High surge current capability.
High reliability.
Low reverse current.
Low forward voltage drop.
Pb / RoHS Free 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2).
