AR2500S - AUTOMOTIVE RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – AR2500S

Datasheet Details

Part number AR2500S
Manufacturer EIC
File Size 29.02 KB
Description AUTOMOTIVE RECTIFIER DIODES
Datasheet download datasheet AR2500S Datasheet
Additional preview pages of the AR2500S datasheet.

📁 Similar Datasheet

  • AR2500 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR25005 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2501 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2501 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2501 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2502 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2502 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2502 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2504 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2504 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
Other Datasheets by EIC
  • AR2500 - AUTOMOTIVE RECTIFIER DIODES
  • AR2500L - AUTOMOTIVE RECTIFIER DIODES
  • AR2501 - AUTOMOTIVE RECTIFIER DIODES
  • AR2501L - AUTOMOTIVE RECTIFIER DIODES
  • AR2501S - AUTOMOTIVE RECTIFIER DIODES
  • AR2502 - AUTOMOTIVE RECTIFIER DIODES
  • AR2502L - AUTOMOTIVE RECTIFIER DIODES
  • AR2502S - AUTOMOTIVE RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

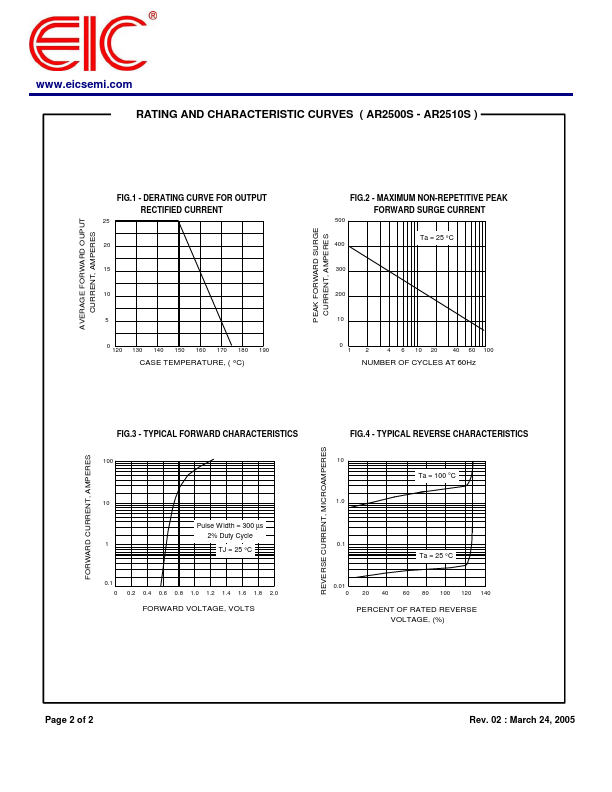

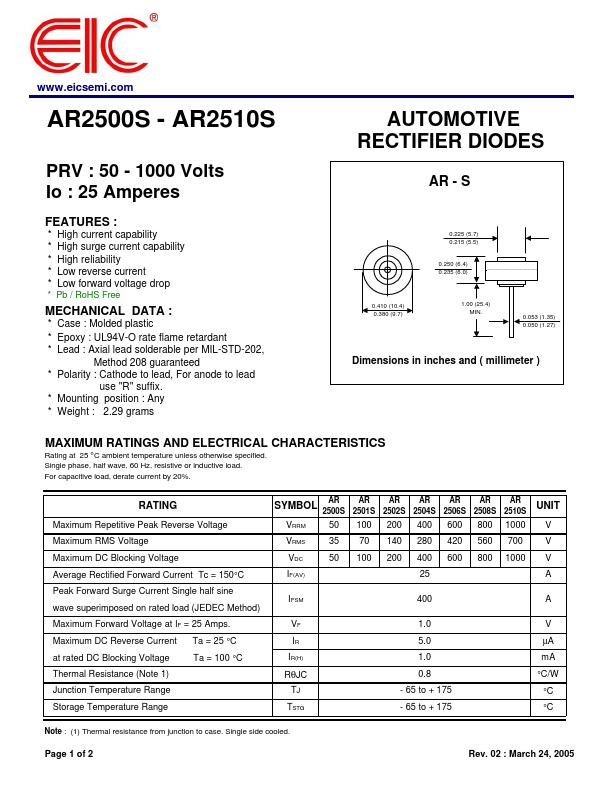

www.eicsemi.com AR2500S - AR2510S PRV : 50 - 1000 Volts Io : 25 Amperes FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Cathode to lead, For anode to lead use "R" suffix. * Mounting position : Any * Weight : 2.29 grams AUTOMOTIVE RECTIFIER DIODES AR - S 0.410 (10.4) 0.380 (9.7) 0.225 (5.7) 0.215 (5.5) 0.250 (6.4) 0.235 (6.0) 1.00 (25.4) MIN. 0.053 (1.35) 0.050 (1.27) Dimensions in inches and ( millimeter ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
