AR2501 - AUTOMOTIVE RECTIFIER DIODES

This page provides the datasheet information for the AR2501, a member of the AR2500 AUTOMOTIVE RECTIFIER DIODES family.

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2).

📥 Download Datasheet

Datasheet preview – AR2501

Datasheet Details

Part number AR2501
Manufacturer EIC
File Size 78.41 KB
Description AUTOMOTIVE RECTIFIER DIODES
Datasheet download datasheet AR2501 Datasheet

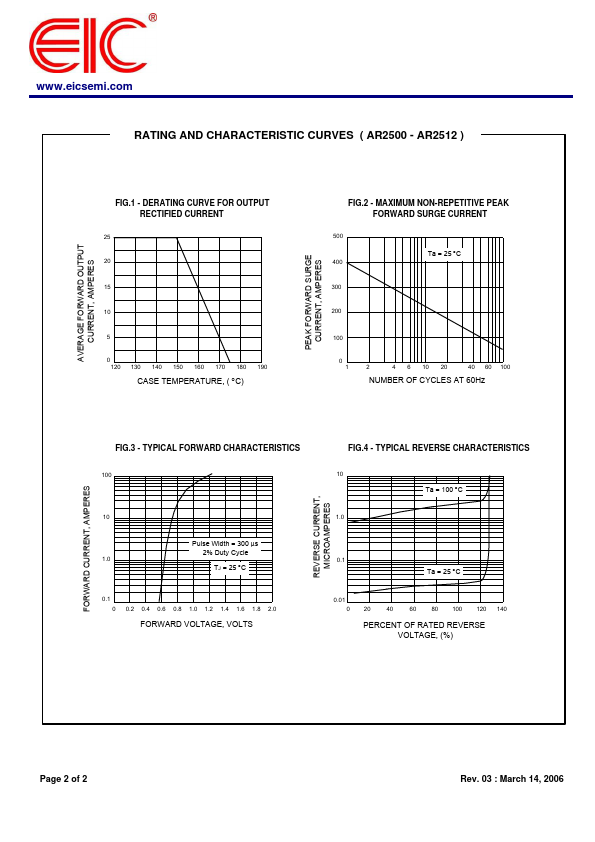

Additional preview pages of the AR2501 datasheet.

📁 Similar Datasheet

  • AR2501 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2501 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2501 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2500 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR25005 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2502 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2502 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2502 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2504 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2504 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
Other Datasheets by EIC
  • AR2501L - AUTOMOTIVE RECTIFIER DIODES
  • AR2501S - AUTOMOTIVE RECTIFIER DIODES
  • AR2500 - AUTOMOTIVE RECTIFIER DIODES
  • AR2500L - AUTOMOTIVE RECTIFIER DIODES
  • AR2500S - AUTOMOTIVE RECTIFIER DIODES
  • AR2502 - AUTOMOTIVE RECTIFIER DIODES
  • AR2502L - AUTOMOTIVE RECTIFIER DIODES
  • AR2502S - AUTOMOTIVE RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

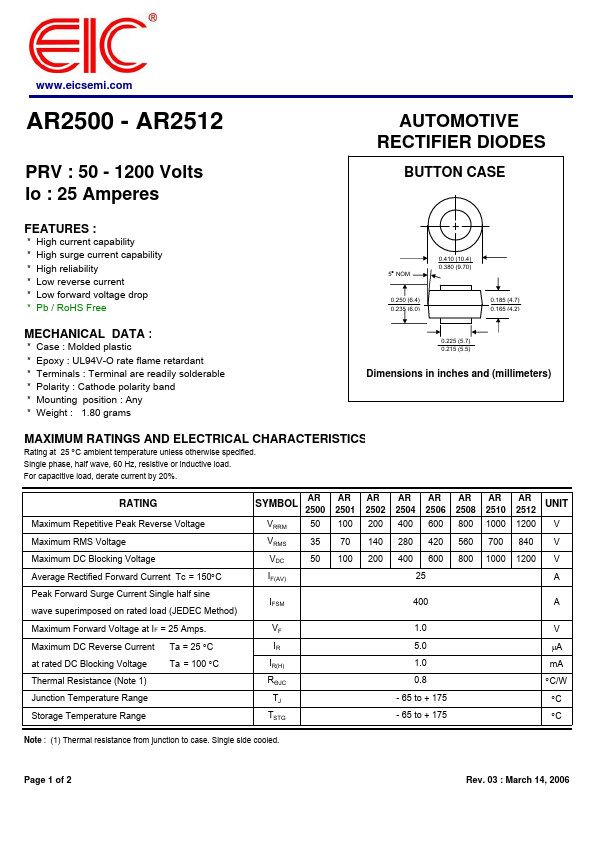

www.eicsemi.com AR2500 - AR2512 PRV : 50 - 1200 Volts Io : 25 Amperes AUTOMOTIVE RECTIFIER DIODES BUTTON CASE FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2) MECHANICAL DATA : * Case : Molded plastic * Epoxy : UL94V-O rate flame retardant * Terminals : Terminal are readily solderable * Polarity : Cathode polarity band * Mounting position : Any * Weight : 1.80 grams 0.225 (5.7) 0.215 (5.5) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
