AR2501L, AR2500L AUTOMOTIVE RECTIFIER DIODES

AR2501L Description

www.eicsemi.com AR2500L - AR2512L PRV : 50 - 1200 Volts Io : 25 Amperes AUTOMOTIVE RECTIFIER DIODES D6 .

AR2501L Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AR2501L, AR2500L. Please refer to the document for exact specifications by model.

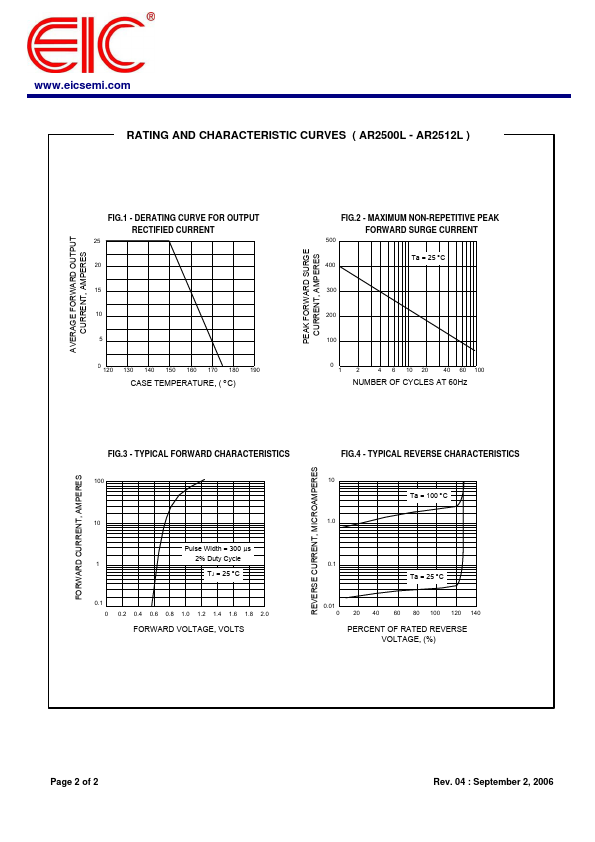

datasheet Preview Page 2

Datasheet Details

Part number
AR2501L, AR2500L
Manufacturer
EIC
File Size
78.35 KB
Datasheet
AR2500L-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: AR2501L, AR2500L.
Please refer to the document for exact specifications by model.
