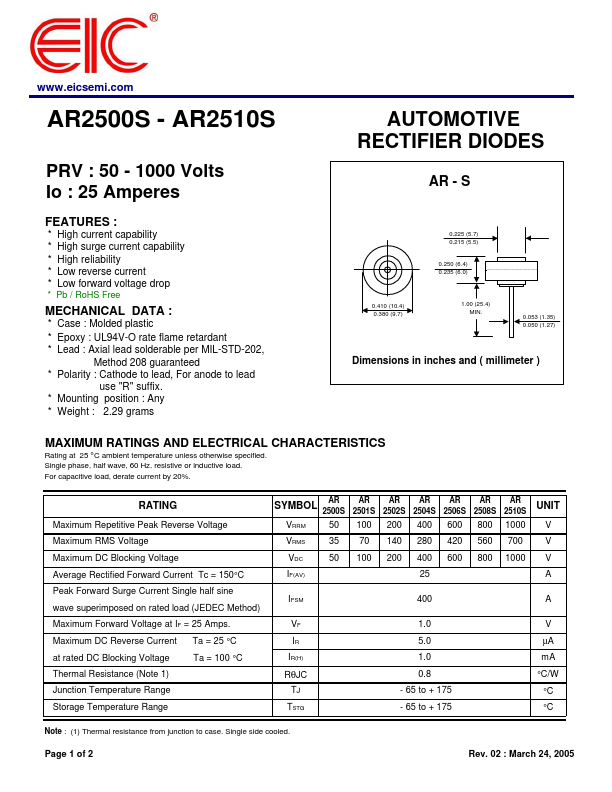

AR2501S, AR2500S AUTOMOTIVE RECTIFIER DIODES

AR2501S Description

www.eicsemi.com AR2500S - AR2510S PRV : 50 - 1000 Volts Io : 25 Amperes .

AR2501S Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AR2501S, AR2500S. Please refer to the document for exact specifications by model.

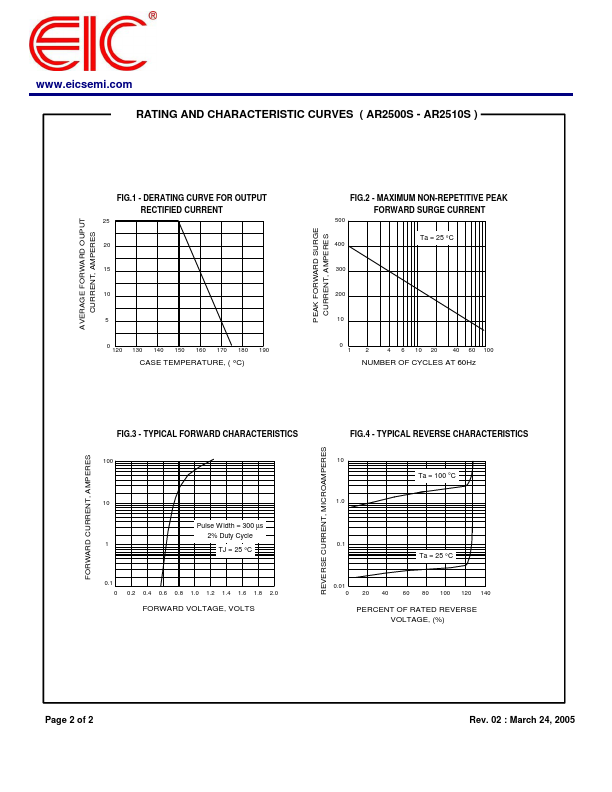

datasheet Preview Page 2

Datasheet Details

Part number
AR2501S, AR2500S
Manufacturer
EIC
File Size
29.02 KB
Datasheet
AR2500S-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: AR2501S, AR2500S.
Please refer to the document for exact specifications by model.
