AR2500L - AUTOMOTIVE RECTIFIER DIODES

Datasheet Summary

Features

  • :.
  • High current capability.
  • High surge current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

Datasheet preview – AR2500L

Datasheet Details

Part number AR2500L
Manufacturer EIC
File Size 78.35 KB
Description AUTOMOTIVE RECTIFIER DIODES
Datasheet download datasheet AR2500L Datasheet
Additional preview pages of the AR2500L datasheet.

📁 Similar Datasheet

  • AR2500 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR25005 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2501 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2501 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2501 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2502 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2502 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
  • AR2502 - 25.0 AMPS. HIGH CURRENT PLASTIC SILICON RECTIFIERS (Yangzhou yangjie electronic)
  • AR2504 - AUTOMOTIVE RECTIFIER (GOOD-ARK Electronics)
  • AR2504 - HIGH VOLTAGE BUTTON DIODES (Shanghai Lunsure Electronic Technology)
Other Datasheets by EIC
  • AR2500 - AUTOMOTIVE RECTIFIER DIODES
  • AR2500S - AUTOMOTIVE RECTIFIER DIODES
  • AR2501 - AUTOMOTIVE RECTIFIER DIODES
  • AR2501L - AUTOMOTIVE RECTIFIER DIODES
  • AR2501S - AUTOMOTIVE RECTIFIER DIODES
  • AR2502 - AUTOMOTIVE RECTIFIER DIODES
  • AR2502L - AUTOMOTIVE RECTIFIER DIODES
  • AR2502S - AUTOMOTIVE RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

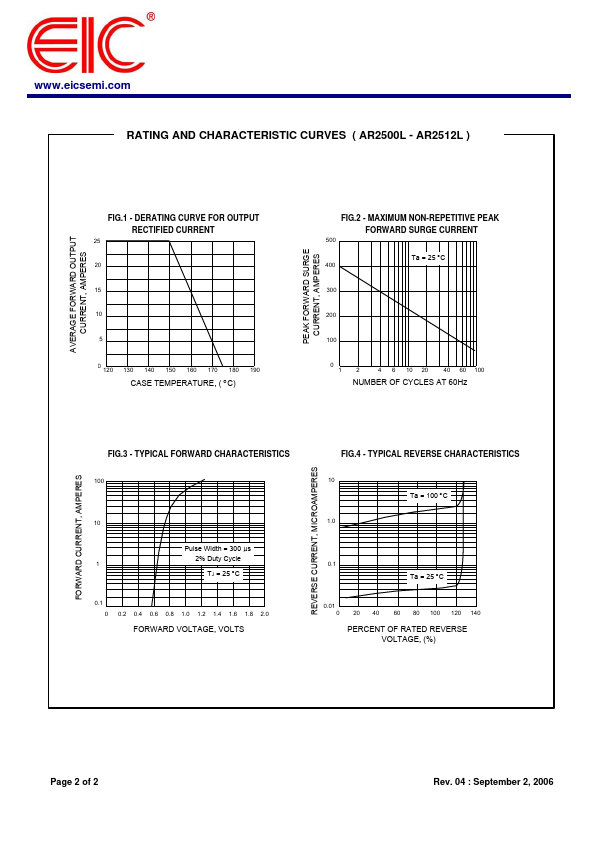

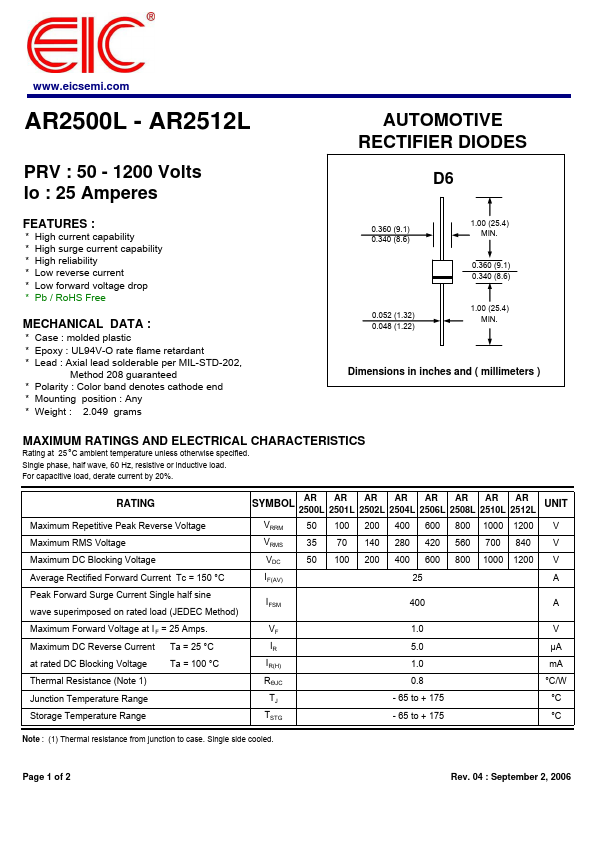

www.eicsemi.com AR2500L - AR2512L PRV : 50 - 1200 Volts Io : 25 Amperes AUTOMOTIVE RECTIFIER DIODES D6 FEATURES : * High current capability * High surge current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 2.049 grams 0.360 (9.1) 0.340 (8.6) 0.052 (1.32) 0.048 (1.22) 1.00 (25.4) MIN. 0.360 (9.1) 0.340 (8.6) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
