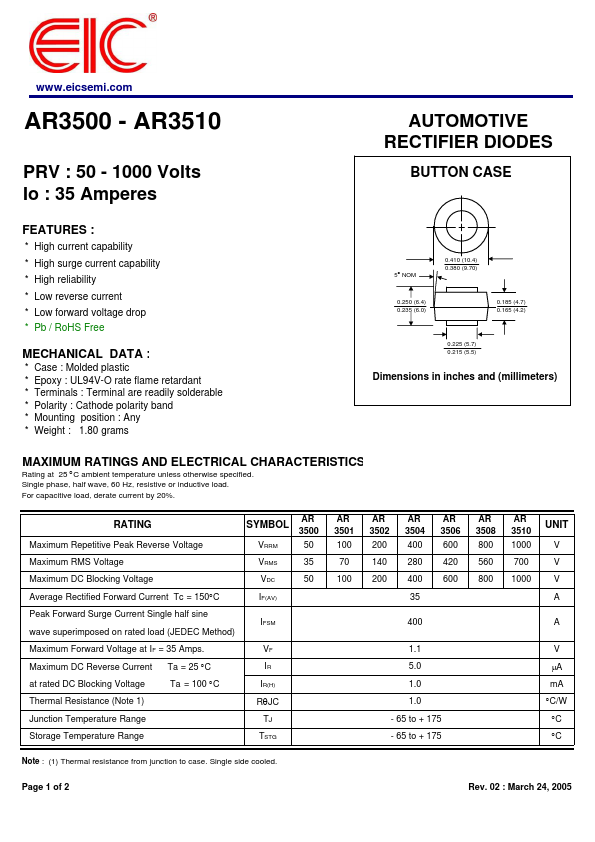

AR3508, AR3500 AUTOMOTIVE RECTIFIER DIODES

AR3508 Description

www.eicsemi.com AR3500 - AR3510 PRV : 50 - 1000 Volts Io : 35 Amperes AUTOMOTIVE RECTIFIER DIODES BUTTON CASE .

AR3508 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Terminals : Terminal are readily sol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AR3508, AR3500. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
AR3508, AR3500
Manufacturer
EIC
File Size
34.99 KB
Datasheet
AR3500-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: AR3508, AR3500.
Please refer to the document for exact specifications by model.
