BAV99 - HIGH SPEED DOUBLE DIODE

Datasheet Summary

Features

  • :.
  • Small plastic SMD package.
  • High switching speed : max. 4 ns.
  • Continuous reverse voltage : max.75 V.
  • Repetitive peak reverse voltage : max. 85 V.
  • Repetitive peak forward current : max. 450 mA.
  • Pb / RoHS Free.

📥 Download Datasheet

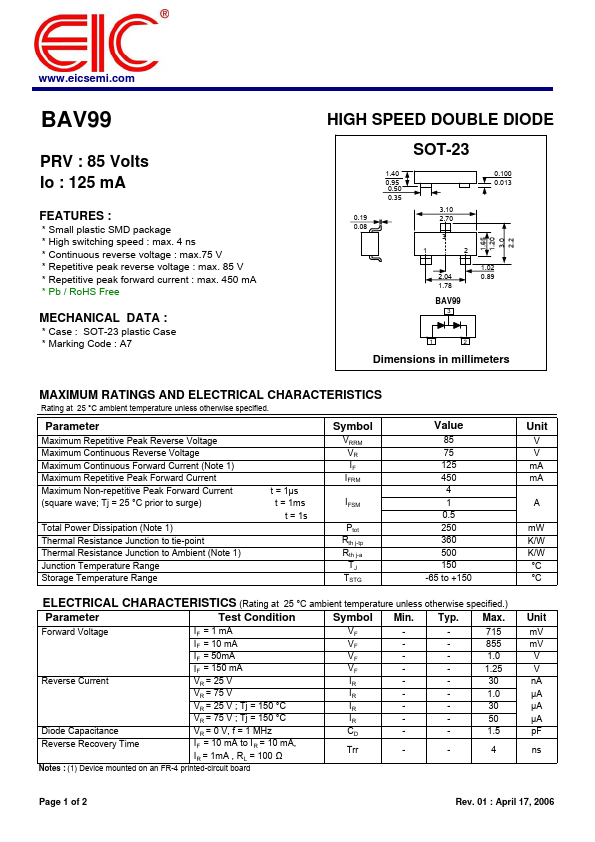

Datasheet preview – BAV99

Datasheet Details

Part number BAV99
Manufacturer EIC
File Size 75.65 KB
Description HIGH SPEED DOUBLE DIODE
Datasheet download datasheet BAV99 Datasheet

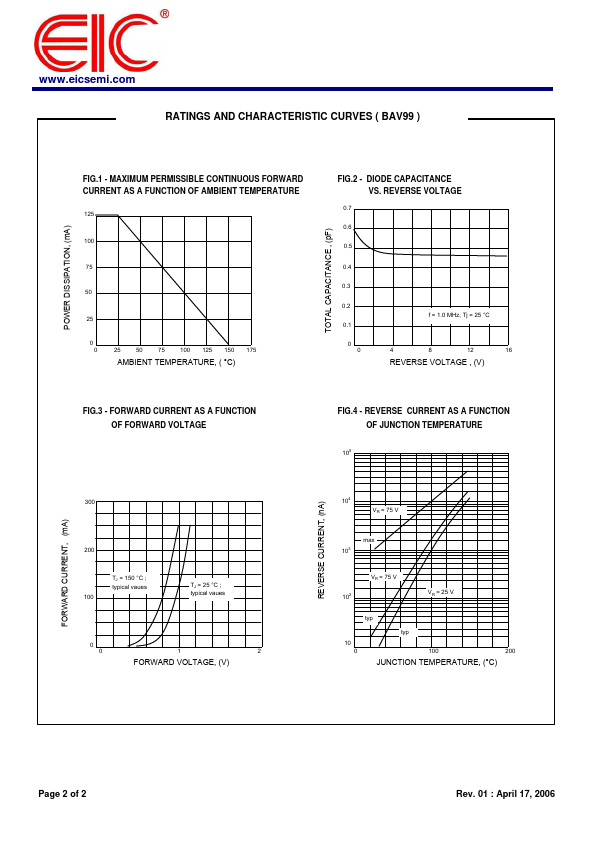

Additional preview pages of the BAV99 datasheet.

📁 Similar Datasheet

  • BAV99 - Silicon Epitaxial Planar Switching Diodes (Toshiba)
  • BAV99 - SWITCHING DIODE (SMC Diode)
  • BAV99 - Small Signal Switching Diode (Vishay)
  • BAV99 - SMD Small Signal Diodes (Diotec)
  • BAV99 - 200mA 70V High Conductance Ultra-Fast Switching Diode (ON Semiconductor)
  • BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
  • BAV99 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • BAV99 - Silicon Switching Diode (Infineon)
  • BAV99 - HIGH CONDUCTANCE ULTRA FAST DIODE (UTC)
  • BAV99 - Diodes (Multicomp)
Other Datasheets by EIC
  • BAV100 - HIGH SPEED SWITCHING DIODES
  • BAV101 - HIGH SPEED SWITCHING DIODES
  • BAV102 - HIGH SPEED SWITCHING DIODES
  • BAV103 - HIGH SPEED SWITCHING DIODES
  • BAV105 - HIGH SPEED SWITCHING DIODE
  • BAV19W - SURFACE MOUNT SWITCHING DIODES
  • BAV19WS - SMALL SIGNAL DIODES
  • BAV20W - SURFACE MOUNT SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com BAV99 PRV : 85 Volts Io : 125 mA FEATURES : * Small plastic SMD package * High switching speed : max. 4 ns * Continuous reverse voltage : max.75 V * Repetitive peak reverse voltage : max. 85 V * Repetitive peak forward current : max. 450 mA * Pb / RoHS Free MECHANICAL DATA : * Case : SOT-23 plastic Case * Marking Code : A7 HIGH SPEED DOUBLE DIODE SOT-23 1.65 1.20 3.0 2.2 1.40 0.95 0.50 0.35 0.19 0.08 0.100 0.013 3.10 2.70 3 1 2 1.02 2.04 0.89 1.78 BAV99 3 1 2 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
