BY133G - GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS

Datasheet Summary

Features

  • :.
  • Glass passivated chip.
  • High current capability.
  • High reliability.
  • Low reverse current.
  • Low forward voltage drop.
  • Pb / RoHS Free.

📥 Download Datasheet

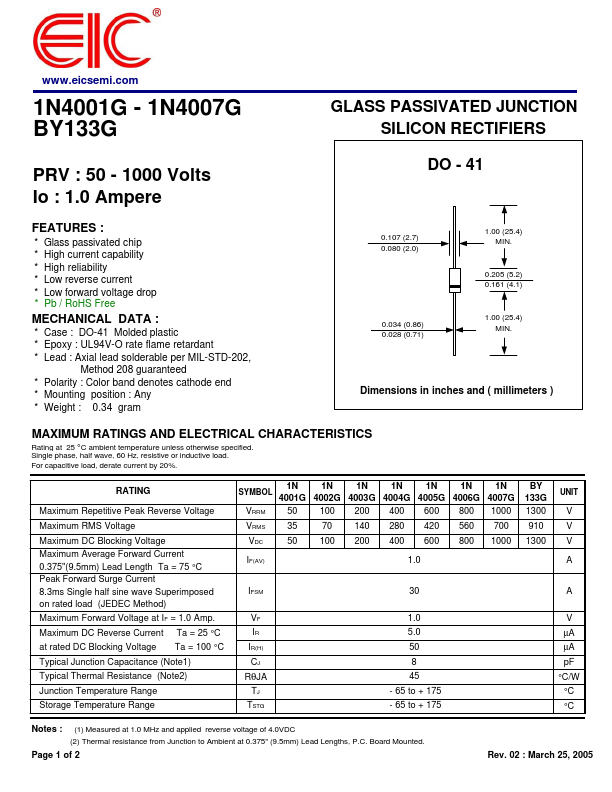

Datasheet preview – BY133G

Datasheet Details

Part number BY133G
Manufacturer EIC
File Size 29.58 KB
Description GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS
Datasheet download datasheet BY133G Datasheet

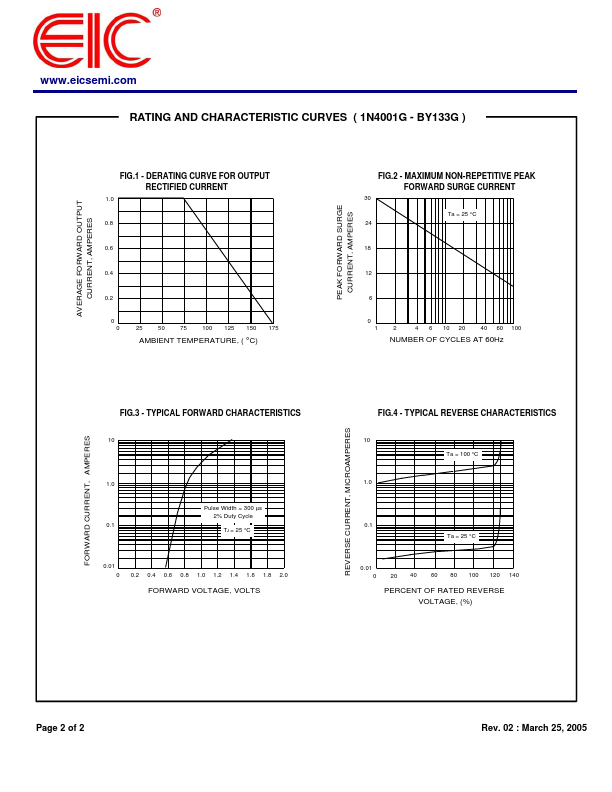

Additional preview pages of the BY133G datasheet.

📁 Similar Datasheet

  • BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (GOOD-ARK Electronics)
  • BY133G - GLASS PASSIVATED SILICON RECTIFIER (STAR SEA)
  • BY133G - General Purpose Rectifiers (UPM)
  • BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (SEMTECH)
  • BY133G - 1.0 Amp Glass Passivated Rectifier (JGD)
  • BY133G - General Purpose Rectifier (Yangzhou Yangjie)
  • BY133GP - Glass Passivated Rectifier (MCC)
  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
Other Datasheets by EIC
  • BY133 - SILICON RECTIFIER DIODES
  • BY136 - SILICON RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
www.eicsemi.com 1N4001G - 1N4007G BY133G GLASS PASSIVATED JUNCTION SILICON RECTIFIERS PRV : 50 - 1000 Volts Io : 1.0 Ampere DO - 41 FEATURES : * Glass passivated chip * High current capability * High reliability * Low reverse current * Low forward voltage drop * Pb / RoHS Free MECHANICAL DATA : * Case : DO-41 Molded plastic * Epoxy : UL94V-O rate flame retardant * Lead : Axial lead solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Color band denotes cathode end * Mounting position : Any * Weight : 0.34 gram 0.107 (2.7) 0.080 (2.0) 0.034 (0.86) 0.028 (0.71) 1.00 (25.4) MIN. 0.205 (5.2) 0.161 (4.1) 1.00 (25.4) MIN. Dimensions in inches and ( millimeters ) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25 °C ambient temperature unless otherwise specified.
