* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Ideal for printed circuit board
* Pb / RoHS Free MECHANICAL DATA :
* Case : Molded plastic
* Epoxy : UL94V-0 rate flame retardant
DB101
EIC
113.29 KB
Mini-bridge rectifier.
www.eicsemi.com
TH97/2478
TH09/2479
IATF 0113686 SGS TH07/1033

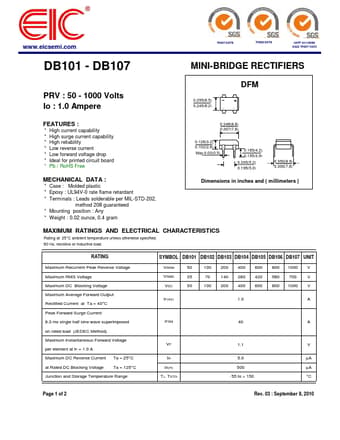

DB101 - DB107
MINI-BRIDGE RECTIFIERS
PRV : 50 - 1000 Volts Io : 1.0 Ampere
DFM
.
