* Glass Passivated Junction
* Hight Current Capability
* Low Forward voltage Drop
* Hight Reliability and Low Leakage
* For Surface Mount Application
* Plastic Material - UL Flammability Classification Rating 94 V-0
* Pb Free / RoHS Compliant 2.75 2.45 0.60 0.40 5.10
DL4002
EIC
54.66 KB
Surface mount glass passivated junction.
TH97/2478
TH09/2479
IATF 0113686 SGS TH07/1033

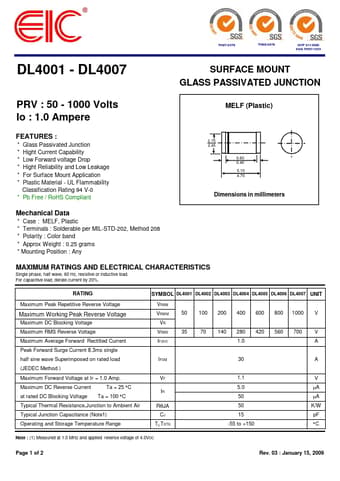

DL4001 - DL4007
SURFACE MOUNT GLASS PASSIVATED JUNCTION
PRV : 50 - 1000 Volts Io : 1.0 Ampere
MEL.
