EDF1DM, EDF1AM - MINIATURE GLASS PASSIVATED ULTRAFAST BRIDGE RECTIFIERS

Name: EDF1DM
SKU: EDF1DM-1213933

EIC

The EDF1DM by EIC is a MINIATURE GLASS PASSIVATED ULTRAFAST BRIDGE RECTIFIERS. Below is the official datasheet preview.

Datasheet Details

Part number	EDF1DM, EDF1AM
Manufacturer	EIC
File Size	34.57 KB
Description	MINIATURE GLASS PASSIVATED ULTRAFAST BRIDGE RECTIFIERS
Datasheet	EDF1AM-EIC.pdf
Note	This datasheet PDF includes multiple part numbers: EDF1DM, EDF1AM. Please refer to the document for exact specifications by model.

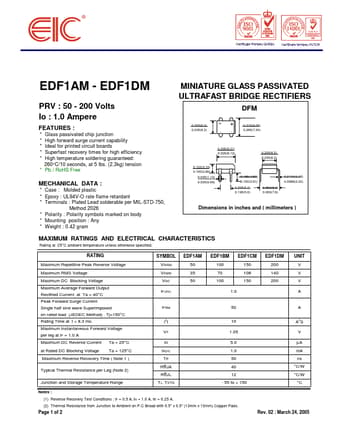

Additional preview pages of the EDF1DM datasheet.

:.
Glass passivated chip junction.
High forward surge current capability.
Ideal for printed circuit boards.
Superfast recovery times for high efficiency.
High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension.
Pb / RoHS Free.
