ERA15-04, ERA15-01 - SILICON RECTIFIER DIODES

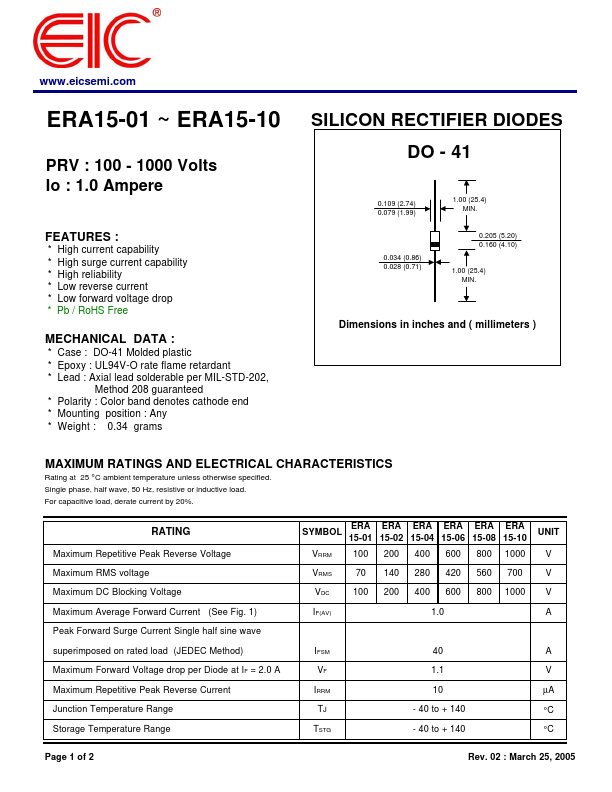

ERA15-04 Description

www.eicsemi.com ERA15-01 ~ ERA15-10 PRV : 100 - 1000 Volts Io : 1.0 Ampere .

ERA15-04 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ERA15-04, ERA15-01. Please refer to the document for exact specifications by model.

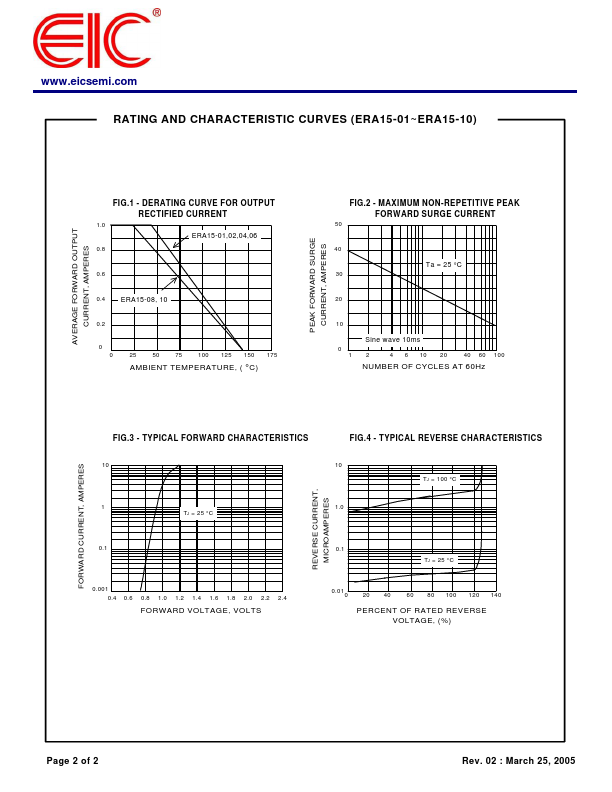

datasheet Preview Page 2

Datasheet Details

Part number
ERA15-04, ERA15-01
Manufacturer
EIC
File Size
31.34 KB
Datasheet
ERA15-01-EIC.pdf
Description
SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: ERA15-04, ERA15-01.
Please refer to the document for exact specifications by model.
