HZS27, HZS4 ZENER DIODES

HZS27 Description

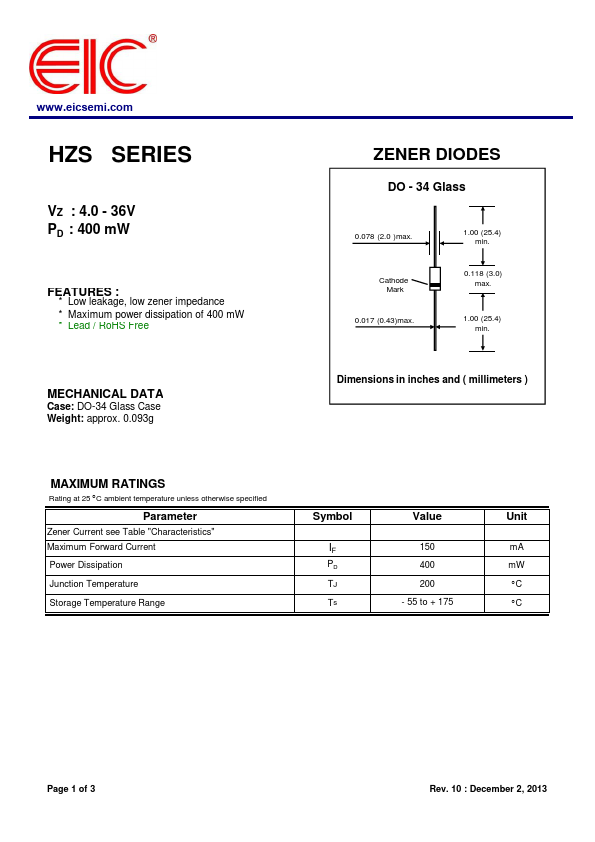

www.eicsemi.com HZS SERIES VZ : 4.0 - 36V PD : 400 mW .

HZS27 Features

* :
* Low leakage, low zener impedance
* Maximum power dissipation of 400 mW
* Lead / RoHS Free MECHANICAL DATA Case: DO-34 Glass Case Weight: approx. 0.093g ZENER DIODES DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.017 (0.43)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00 (25.4) min. Dim

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HZS27, HZS4. Please refer to the document for exact specifications by model.

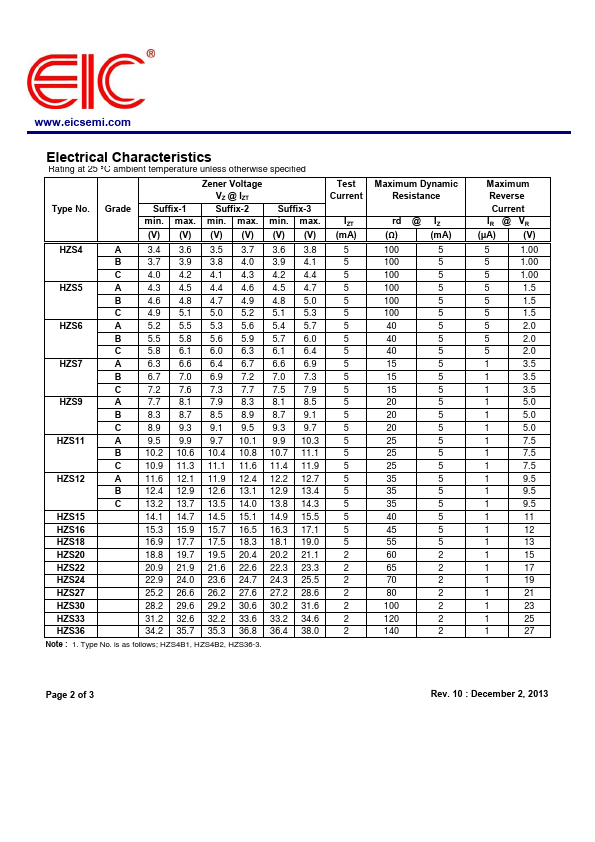

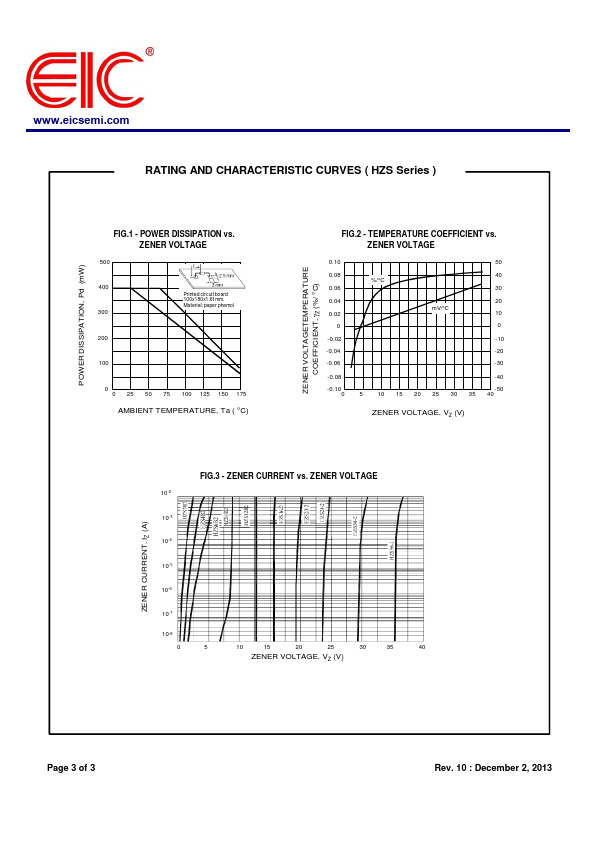

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HZS27, HZS4
Manufacturer
EIC
File Size
133.58 KB
Datasheet
HZS4-EIC.pdf
Description
ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: HZS27, HZS4.
Please refer to the document for exact specifications by model.
