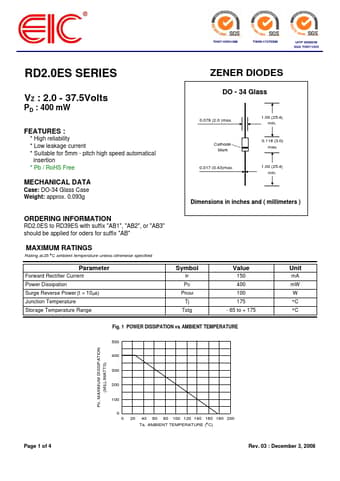

Part number:
RD33ES
Manufacturer:
EIC
File Size:
57.25 KB
Description:
Zener diodes.
* :
* High reliability
* Low leakage current
* Suitable for 5mm - pitch high speed automatical insertion
* Pb / RoHS Free MECHANICAL DATA Case: DO-34 Glass Case Weight: approx. 0.093g DO - 34 Glass 0.078 (2.0 )max. Cathode Mark 0.017 (0.43)max. 1.00 (25.4) min. 0.118 (3.0) max. 1.00
RD33ES
EIC
57.25 KB
Zener diodes.
