SB360, SB320 SCHOTTKY BARRIER RECTIFIER DIODE

SB360 Description

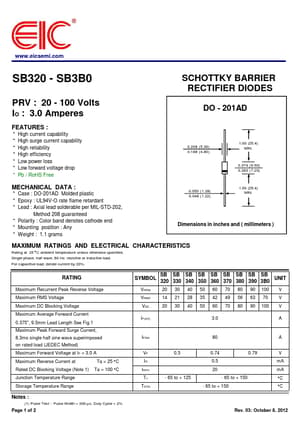

www.eicsemi.com SB320 - SB3B0 SCHOTTKY BARRIER RECTIFIER DIODES PRV : 20 - 100 Volts IO : 3.0 Amperes DO - 201AD .

SB360 Features

* :
* High current capability
* High surge current capability
* High reliability
* High efficiency
* Low power loss
* Low forward voltage drop
* Pb / RoHS Free 0.208 (5.30) 0.188 (4.80) 1.00 (25.4) MIN. 0.374 (9.50) 0.283 (7.20) MECHANICAL DATA :
* Case : DO-201AD Mo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB360, SB320. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Details

Part number
SB360, SB320
Manufacturer
EIC
File Size
113.73 KB
Datasheet
SB320-EIC.pdf
Description
SCHOTTKY BARRIER RECTIFIER DIODE
Note
This datasheet PDF includes multiple part numbers: SB360, SB320.
Please refer to the document for exact specifications by model.
