SS14, SS12 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS14 Description

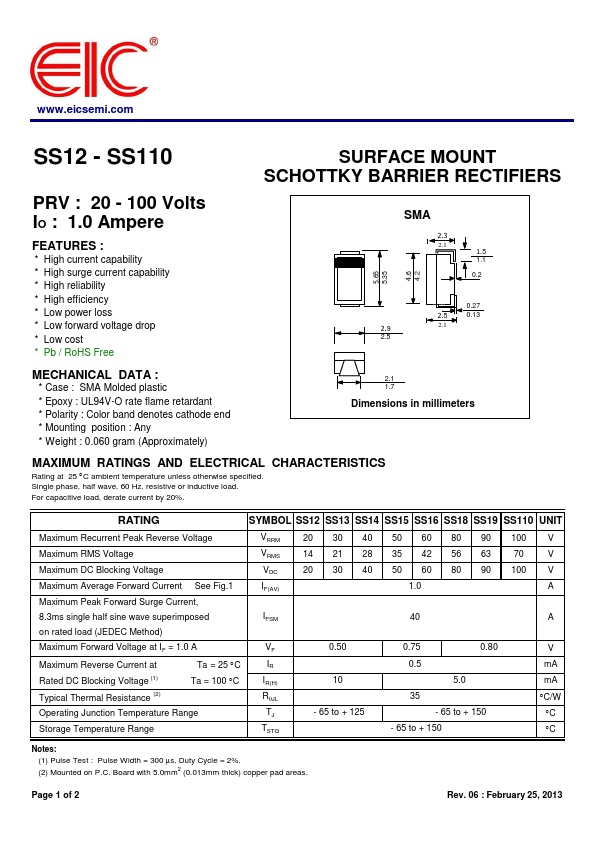

www.eicsemi.com SS12 - SS110 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS PRV : 20 - 100 Volts IO : 1.0 Ampere .

SS14 Features

* :
* High current capability
* High surge current capability
* High reliability
* High efficiency
* Low power loss
* Low forward voltage drop
* Low cost
* Pb / RoHS Free 5.65 5.35 4. 6 4. 2 SMA 2.3 2.1 1.5 1.1 0.2 0.27 2.5 0.13 2.9 2.1 2.5 MECHANICAL DATA :

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS14, SS12. Please refer to the document for exact specifications by model.

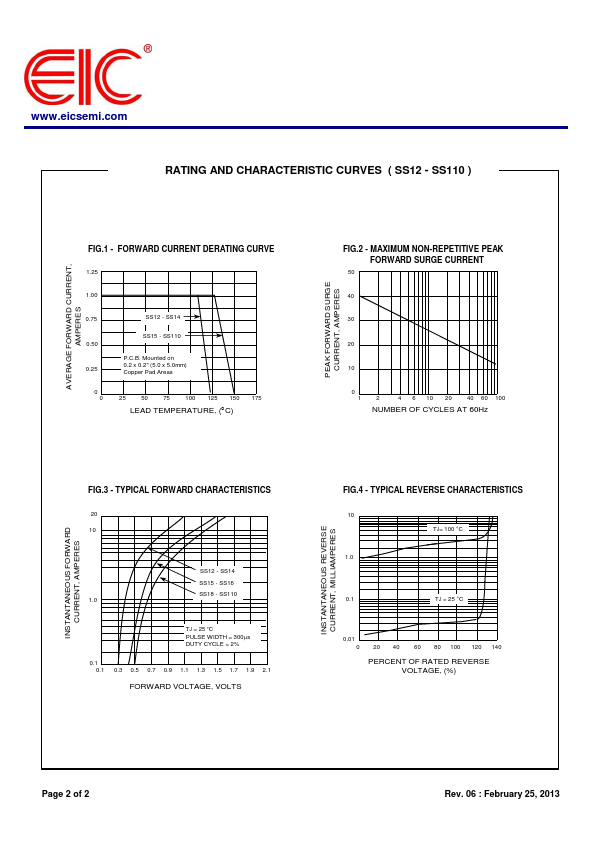

datasheet Preview Page 2

Datasheet Details

Part number
SS14, SS12
Manufacturer
EIC
File Size
231.86 KB
Datasheet
SS12-EIC.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SS14, SS12.
Please refer to the document for exact specifications by model.
