SS1438 - Unipolar Hall Switch

Datasheet Summary

Description

The SS1438 is a unipolar Hall effect sensor IC fabricated from mixed signal CMOS technology.

The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.

Features

  • Wide operating voltage range from 2.5V to 24V.
  • Medium sensitivity.
  • CMOS technology.
  • Chopper-stabilized amplifier stage  Superior temperature stability  Extremely low switchpoint drift  Insensitive to physical stress.
  • Low current consumption.
  • Open drain output.
  • Tiny SOT23 3L or flat SIP 3L Both RoHS Compliant packages.

📥 Download Datasheet

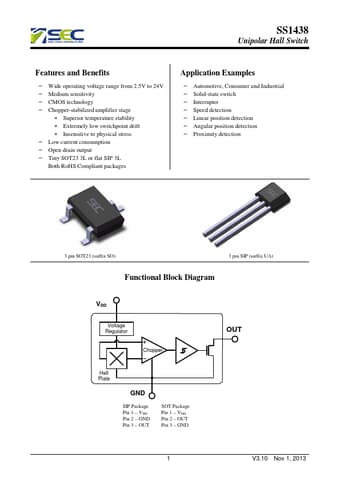

Datasheet preview – SS1438
