SS14 Datasheet PDF - Vishay Surface Mount Schottky Barrier Rectifier Specs

SS14 - Surface Mount Schottky Barrier Rectifier

This page provides the datasheet information for the SS14, a member of the SS12 Surface Mount Schottky Barrier Rectifier family.

Datasheet Summary

Features

Low profile package Available.
Ideal for automated placement.
Guardring for overvoltage protection.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Available.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions of compliance please see www. vis.

Datasheet Details

Part number	SS14
Manufacturer	Vishay
File Size	1.12 MB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SS14 Datasheet

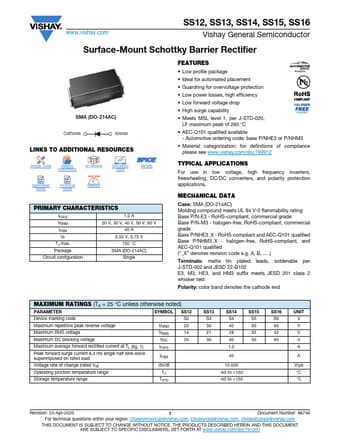

Additional preview pages of the SS14 datasheet.

📁 Similar Datasheet

SS14 - 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (TIPTEK)

SS14 - 1.0 AMP. Surface Mount Schottky Barrier Rectifiers (Taiwan Semiconductor)

SS14 - Schottky Barrier Rectifiers (GME)

SS14 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE (WON-TOP)

SS14 - Schottky Rectifier (Micro Commercial Components)

SS14 - Schottky Rectifier (Fairchild Semiconductor)

SS14 - 1.0AMP.SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS (Kingtronics)

SS14 - Power Diodes (Multicomp)

SS14 - 1.0A Surface Mount Schottky Rectifier (TAITRON)

SS14 - Schottky Rectifier (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

www.vishay.com SS12, SS13, SS14, SS15, SS16 Vishay General Semiconductor Surface-Mount Schottky Barrier Rectifier SMA (DO-214AC) Cathode Anode LINKS TO ADDITIONAL RESOURCES Design Tools Related Documents 3D 3D 3D Models Simulation Tools Models A Application Notes T Technical Notes Marking PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 1.0 A 20 V, 30 V, 40 V, 50 V, 60 V 40 A 0.50 V, 0.
