SS15, SS12, Surface Mount Schottky Barrier Rectifier

www.vishay.com SS12, SS13, SS14, SS15, SS16 Vishay General Semiconductor Surface-Mount Schottky Barrier Rectifier SMA (DO-214AC) Cathode Anode L.

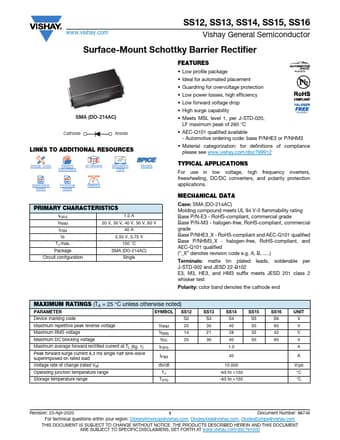

datasheet Preview Page 1 from Datasheet4u.com

SS12-Vishay.pdf

SS15 Datasheet Preview — This datasheet PDF includes multiple part numbers: SS15, SS12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS15, SS12

Manufacturer:

Vishay ↗

File Size:

1.12 MB

Description:

Surface Mount Schottky Barrier Rectifier

Note:

This datasheet PDF includes multiple part numbers: SS15, SS12.
Please refer to the document for exact specifications by model.

Features

* Low profile package Available
* Ideal for automated placement
* Guardring for overvoltage protection
* Low power losses, high efficiency
* Low forward voltage drop
* High surge capability
* Meets MSL level 1, per J-STD-020, LF maximum

Applications

* For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: SMA (DO-214AC) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N-M3 - halogen-free, RoHS-compliant
