SZ153D SURFACE MOUNT SILICON ZENER DIODES

SZ153D Description

SZ153D - SZ15D0 VZ : 3.3 - 200 Volts PD : 1 Watt .

SZ153D Features

* :
* Complete Voltage Range 3.3 to 200 Volts
* High peak reverse power dissipation
* High reliability
* Low leakage current MECHANICAL DATA
* Case : SMA (DO-214AC) Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead formed for Surface mount
* Polarity :

📥 Download Datasheet

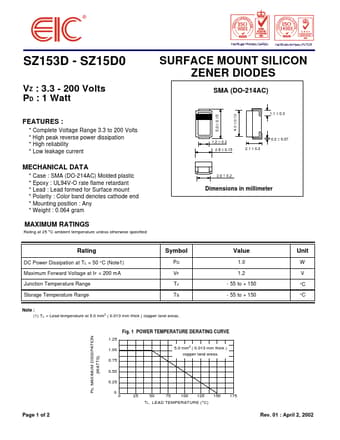

Preview of SZ153D PDF
datasheet Preview Page 2

Datasheet Details

Part number
SZ153D
Manufacturer
EIC
File Size
26.40 KB
Datasheet
SZ153D-EIC.pdf
Description
SURFACE MOUNT SILICON ZENER DIODES
