EM19100S Datasheet - ELAN Microelectronics Corp

EM19100S 8-BIT 20 MSPS VIDEO A/D CONVERTER (CMOS)

EM19100S Features

* 20MSPS maximum conversion speed Build-in sampling and hold circuit Internal self-bias reference voltage 90mW power dissipation at 20MSPS +5V single power supply Available in 24 pin SOP Series EM19100M for 300 mil SOP EM19100S for

EM19100S_ELANMicroelectronicsCorp.pdf

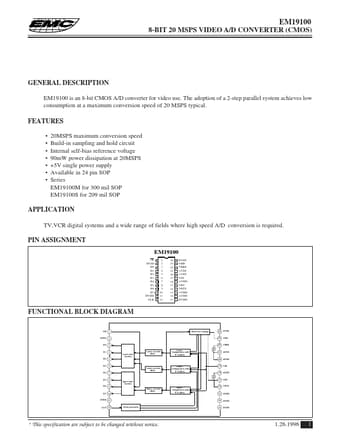

Preview of EM19100S PDF
EM19100S Datasheet Preview Page 2 EM19100S Datasheet Preview Page 3

Datasheet Details

Part number:

EM19100S

Manufacturer:

ELAN Microelectronics Corp

File Size:

104.73 KB

Description:

8-bit 20 msps video a/d converter (cmos).
