EM73C63 Datasheet - ELAN Microelectronics Corp

4-BIT MICRO-CONTROLLER

EM73C63 Features

* Operation voltage

* Clock source : 2.4V to 5.5V. : Dual clock system. Low-frequency oscillator is Crystal or RC oscillator (32KHz, connect a external resistor) by mask option and high-frequency oscillator is RC oscillator (connect a external resistor and a capacitor). External cloc

EM73C63 General Description

EM73C63 is an advanced single chip CMOS 4-bit micro-controller. It contains 32K-byte ROM, 500-nibble RAM, 4-bit ALU, 13-level subroutine nesting, 22-stage time base, two 12-bit timer/counters for the kernel function. EM73C63 is also equipped with 5 interrupt sources, 3 I/O ports (including 1 input p.

EM73C63 Datasheet (220.97 KB)

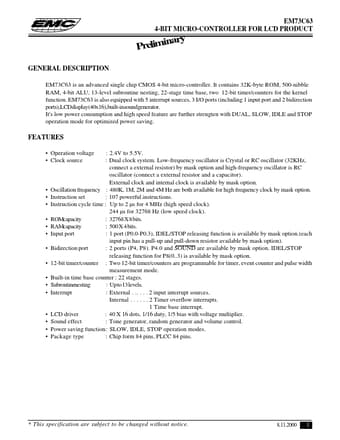

EM73C63 Datasheet Preview — Preview of EM73C63 PDF

Datasheet Details

Part number:

EM73C63

Manufacturer:

ELAN Microelectronics Corp

File Size:

220.97 KB

Description:

4-bit micro-controller.
