EM83040B Datasheet, Controller, ELAN Microelectronics Corp

EM83040B Features

  • Controller (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) Supply power: 2.5~5.5V LCD drive voltage: 3.6 to15V Internal RAM: 2.5k x 4 bits RAM can be controlled by eight signals including four bits data

PDF File Details

Part number:

EM83040B

Manufacturer:

ELAN Microelectronics Corp

File Size:

419.95kb

Download:

📄 Datasheet

Description:

Lcd controller. The EM83040B is a dot matrix LCD driver, which is fabricated by low power CMOS technology. This chip includes 80-bits shift register,

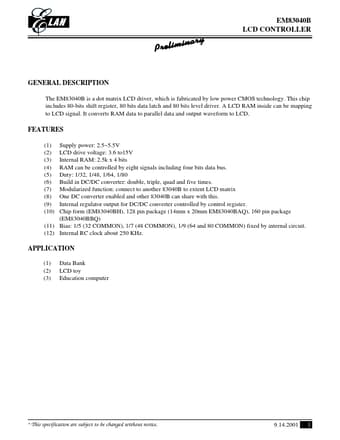

Datasheet Preview: EM83040B 📥 Download PDF (419.95kb)
Page 2 of EM83040B Page 3 of EM83040B
