EM83040A - LCD CONTROLLER

The EM83040A is a dot matrix LCD driver which is fabricated by low power CMOS technology.

This chip includes 80- bits shift register , 80 bits data latch and 80 bits level driver.

A LCD RAM inside can be mapping to LCD signal.

It converts RAM data to parallel data and output lcd waveform to LCD.

FE

EM83040A Features

* (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) Supply power 2.6~6V Internal RAM : 2.5k x 4 bits RAM can be controlled by eight signals including four bit data bus. LCD drive voltage :

EM8-304.pdf

This datasheet PDF includes multiple part numbers: EM83040A, EM8. Please refer to the document for exact specifications by model.

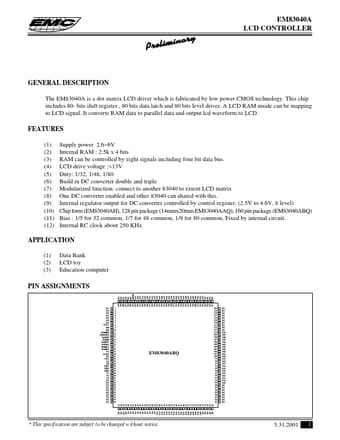

EM83040A Datasheet Preview Page 2 EM83040A Datasheet Preview Page 3

Datasheet Details

Part number:

EM83040A, EM8

Manufacturer:

ELAN Microelectronics Corp

File Size:

948.02 KB

Description:

Lcd controller.

Note:

This datasheet PDF includes multiple part numbers: EM83040A, EM8.
Please refer to the document for exact specifications by model.
