SC3525 Datasheet - ELEKTRA REINSTADLER

SC3525 DC/DC Converter

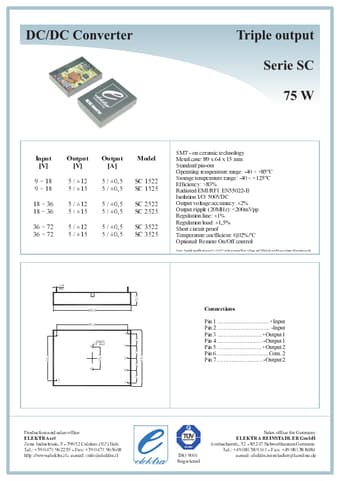

www.DataSheet4U.net DC/DC Converter Triple output Serie SC 75 W Input [V] 9 ÷ 18 9 ÷ 18 Output [V] 5 / ±12 5 / ±15 Output [A] 5 / ±0,5 5 / ±0,5 Model SC 1522 SC 1525 18 ÷ 36 18 ÷ 36 5 / ±12 5 / ±15 5 / ±0,5 5 / ±0,5 SC 2522 SC 2525 36 ÷ 72 36 ÷ 72 5 / ±12 5 / ±15 5 / ±0,5 5 / ±0,5 SC 3522 SC 3525 SMT - on ceramic technology Metal case: 89 x 64 x 15 mm Standard pin-out Operating temperature range: -40 ÷ +85°C Storage temperature range: -40 ÷ +125°C Efficiency: >83% Radiated EMI/RFI.

SC3525_ELEKTRAREINSTADLER.pdf

SC3525 Datasheet Preview — Preview of SC3525 PDF

Datasheet Details

Part number:

SC3525

Manufacturer:

ELEKTRA REINSTADLER

File Size:

221.14 KB

Description:

Dc/dc converter.
