ELM381 - 60Hz Long Interval Counter

ELM Electronics

📥 Download Datasheet

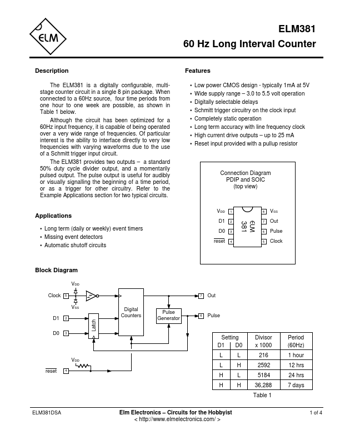

ELM381 Datasheet Preview — Preview of ELM381 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ELM381
Manufacturer	ELM Electronics
File Size	21.96 KB
Description	60Hz Long Interval Counter
Datasheet	ELM381_ELMElectronics.pdf

ELM381 Product details

Description

The ELM381 is a digitally configurable, multistage counter circuit in a single 8 pin package.

Features

Low power CMOS design - typically 1mA at 5V.
Wide supply range.
3.0 to 5.5 volt operation.
Digitally selectable delays.
Schmitt trigger circuitry on the clock input.
Completely static operation.
Long term accuracy with line frequency clock.
High current drive outputs.
up to 25 mA.
Reset input provided with a pullup resistor Connection Diagram PDIP and SOIC (top view) VDD 1 D1 2 D0 3 reset 4 8 VSS 7 Out.
