ELM325

J1708 Interpreter

ELM325 Features

* Supports both SAE J1587 and J1922

* High speed RS232 interface

* Works with standard RS485 transceivers

* Fully configurable with AT commands

* Wide operating voltage range (1.8 to 5.5V)

* Low power CMOS design Connection Diagram PDIP and SOIC (top

ELM325 General Description

With the advent of electronic engine controls, many vehicles also adopted some form of diagnostic tools to help monitor their operation. As more modules began to be used in vehicles, there was also a need for the devices to share information rather than each independently obtaining it from separate .

ELM325 Datasheet (182.33 KB)

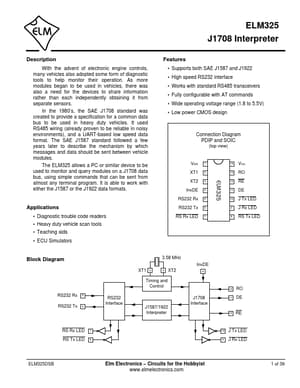

Preview of ELM325 PDF

Datasheet Details

Part number:

ELM325

Manufacturer:

ELM

File Size:

182.33 KB

Description:

J1708 interpreter.
